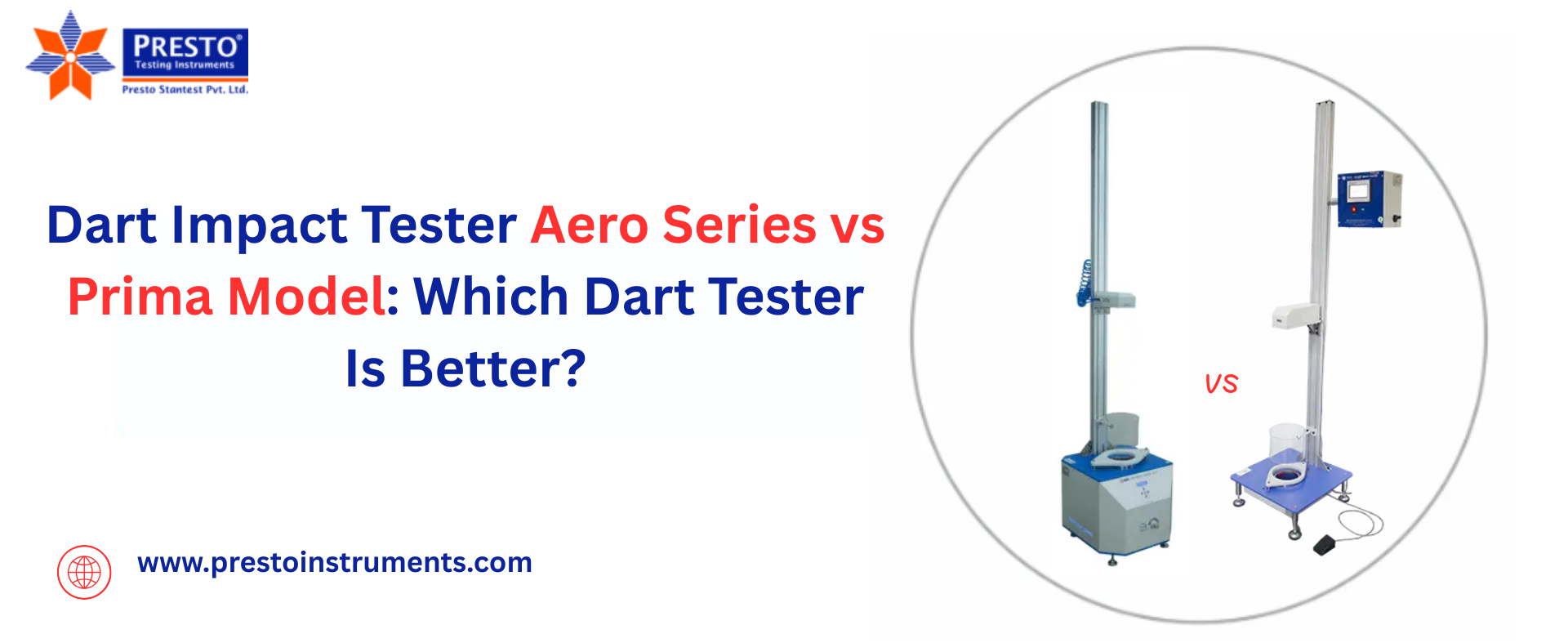

Dart Impact Tester Aero Series vs Prima Model: Which Dart Tester Is Better?

Plastic materials in the form of flexible sheets are made lightweight and at the same time strong enough to secure the goods all along the supply chain. But in actual manufacturing and logistics scenarios, films are often subjected to dynamic impact loads, such as the impact of falling bags when filling, carton movement during transportation, or the impact of falling packaged products on the conveyor system.

Provided that the film structure has insufficient impact resistance, a number of failure modes are possible:

• Puncture rupture from localized stress concentration
• Propagation tears initiated by micro-defects in the film
• Seal-line failure due to uneven thickness distribution
• Brittle fracture in multilayer films under sudden impact

The failures have a tendency to become noticed after packaging has been underway, and therefore it is not cheap to fix and restore. In the case of manufacturers of polyethylene films, laminates, or industrial bags, it is thus important to know the strength of the impact of the film.

Aero Series Dart Impact Tester

The Aero Series is meant for the laboratories where the repeatability and efficiency in the testing are very essential.

Technical Characteristics

• Pneumatic dart release mechanism that minimizes operator variability
• Precision drop alignment to ensure consistent dart trajectory
• High-resolution digital interface for accurate data reading
• Stable clamping system that reduces specimen slippage during impact

Practical Advantages

Since the dart release is manually operated, the drop has a fixed velocity and alignment and decreases differences between experiments. This improves statistical reliability when performing the staircase method used in dart impact testing.

The Aero Series is particularly suited for:

• High-volume film production facilities
• Export-oriented packaging manufacturers
• Laboratories conducting frequent compliance testing

Prima Model Dart Impact Tester

The Prima Model Dart Impact Tester is more oriented towards mechanical reliability and ease of use, so it is appropriate in the case of daily quality control.

Technical Characteristics

• Manual dart release mechanism
• Digital display for impact measurement
• Rigid steel frame for structural stability
• Simple weight adjustment system

Practical Advantages

Although the release mechanism is manual, the instrument still provides accurate measurements when operated under controlled laboratory conditions.

It is often used by:

• Small to mid-scale film manufacturers
• Quality control labs performing periodic testing
• Facilities requiring cost-efficient material testing instruments

Why Dart Impact Testing Is Critical in Film Manufacturing

Impact resistance is a key performance parameter for flexible packaging films because sudden mechanical loads differ significantly from static tensile stresses.

For example:

• A film may show high tensile strength yet fail easily under impact.
• Multilayer laminates may exhibit interlayer delamination when struck.
• Thin films with good elongation properties may still tear under concentrated impact force.

A Dart Impact Tester quantifies the energy absorption capability of the film before rupture occurs. This data helps manufacturers optimize:

• Polymer formulation
• Film thickness distribution
• Layer structure in co-extruded films
• Seal strength compatibility with impact resistance

Working Principle of a Dart Impact Tester

The test method is based on a controlled free-fall impact experiment.

Test Procedure

1. A circular film specimen is clamped securely in the test fixture.
2. A hemispherical dart is positioned at a defined drop height.
3. Known weights are added to the dart.
4. The dart is released and falls freely onto the film surface.
5. The result is recorded as failure or non-failure.

The test follows a statistical staircase method to determine the impact energy causing failure in 50% of samples (F50 value).

Key Features and Benefits

High Measurement Accuracy

Precision-aligned dart drop ensures consistent impact location.

Repeatable Testing Conditions

Stable clamping prevents film slippage and uneven stress distribution.

Flexible Weight Configuration

Incremental weights allow accurate determination of failure thresholds.

Operator-Friendly Interface

Digital displays provide quick interpretation of test results.

These features make the Dart Impact Tester a vital component of modern industrial testing machines used in packaging quality assurance.

Applications Across Industries

Dart impact testing is widely used in:

• Flexible packaging film manufacturing
• Food packaging materials
• Pharmaceutical sachet films
• Industrial liner bags
• Agricultural plastic films
• Multilayer laminate production

The test ensures films maintain adequate impact resistance during handling, stacking, and transportation.

Compliance with International Standards

Reliable dart impact testing follows globally recognized standards, including:

• ASTM D1709 – Standard method for determining impact resistance of plastic film using a falling dart
• ISO guidelines for plastic film testing
• Packaging validation recommendations from International Safe Transit Association

Compliance with these standards ensures test data is accepted across global supply chains and regulatory environments.

Why Choose Presto Instruments

Presto Instruments boasts of a rich history in the design of precision packaging testing gear for the world's manufacturing sectors.

Key strengths include:

• High-precision mechanical engineering
• Reliable test repeatability
• Compliance with ASTM and international standards
• Calibration and technical support services
• Scalable solutions for different laboratory requirements

These features assist manufacturers in having a steady quality of packaging and effective protection of products.

These two instruments help manufacturers to precisely measure the film impact resistance and minimize packaging failures that occur due to sudden mechanical forces.

Contact Presto Instruments for dart impact tester specifications, price, or demo. Premium dart tester manufacturer supplying UAE, Saudi Arabia, South Africa, and Nigeria.

FAQs

1. What is a Dart Impact Tester used for?
A Dart Impact Tester is an instrument used to measure the impact resistance of plastic films to impact on the division of the material by calculating the weight needed to break the material during a controlled drop test.

2. What affects dart impact test results?
Thickness of the film, polymer composition, multilayer structure, dart weight, drop height, and the condition of specimen clamping can affect results.

3. What is the typical dart impact tester price?
The Dart impact tester is a product whose price depends on the level of automation, digital controls, and test range. Highly developed models with the pneumatic release mechanism would be costly compared to manual ones.

4. Which industries use dart testers?
Dart testers are applied by industries like flexible packaging, plastic film manufacturing, food packaging, pharmaceuticals, and bag manufacturing.

5. Which standard governs dart impact testing?
ASTM D1709 is the most commonly used standard, as it outlines the steps to be taken in determining the impact resistance of plastic film by the falling dart method.
