Preform One-Click Vision Measurement System: How Does It Work?

PET preform manufacturers really need to get the dimensions right. If the neck of a preform is a bit off, it can cause problems with the bottles. The threads will be misaligned. You need to line up the gate on the preform. If the gate is not lined up correctly on the preform, it will cause problems. The bottles will leak. Sometimes the batches of bottles have to be thrown away because of these problems.

People have been using tools like go/no-go gauges and CMMs for a while now to check the dimensions of preforms. These tools are really slow. They depend on the person who is using the preform tools. That is why a special machine that can measure a preform with one-click measurement is a big deal. PET preform manufacturers can use this machine to get measurements quickly and easily.

What Is the PreForm Winner?

The PreForm Winner is an accurate machine that checks the size of PET preforms without touching them. It takes high-quality pictures. Then it uses computer programs to figure out the important measurements from just one picture of the PreForm Winner. The PreForm Winner does all this without touching the thing it is measuring.

This thing is made for people who make preforms and for companies that do beverage packaging, pharmaceutical packaging, edible oil, cosmetics, and injection molding. It ensures the measurements are always right and has a record of everything that is done with the product.

Importance of PreForm Winner

If you are interested in getting a Preform one-click measurement system, you must understand its importance first. This one-click vision measurement system has several benefits, and some of them are listed below:

• Removes operator variability: The new system takes out the variability of the operator. This is because it has a one-click capture that replaces the readings that people used to do. These manual readings were not always the same.
• Faster inspection: The inspection process is also faster. It can measure a part in under 2 seconds. This is a difference from the minutes it took when people used to do it with a CMM or manual gauging.
• Catches real dimension errors: The system can also catch dimension errors. This is different from Go/No-Go gauges that only tell you if something passes or fails. They do not give you the values.
• Full traceability: Preform quality testing Instruments also keep track of everything. Every measurement is logged with a timestamp and a pass/fail report. This is different from logs that people used to keep.

How Does the Preform One-Click Measurement System Work?

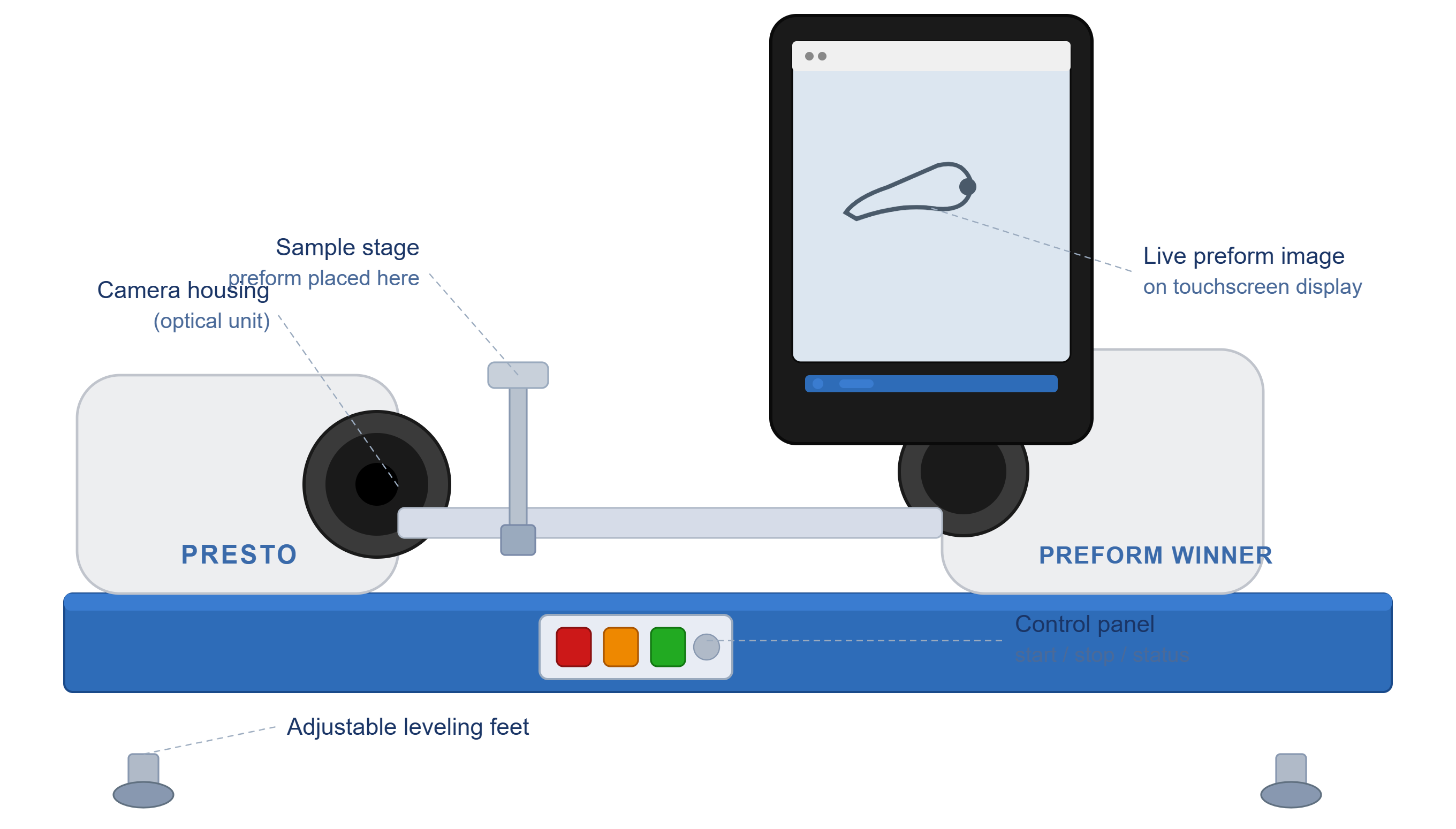

1. Sample placement: The preform is placed under the optical unit; no fixturing or manual alignment is needed.
2. One-click capture: A single click triggers the high-resolution CMOS camera and double telecentric lens to capture the full preform image.
3. Sub-pixel image processing: The computer uses sub-pixel edge detection algorithms to do this, which means it can find the contours, threads, and edges within the captured image.
4. Simultaneous multi-dimensional measurement: The machine looks at all the things that are set for it: the diameters, angles, radii, distances, and shapes of the threads. It measures all of these things from one picture. It does this in less than 2 seconds.
5. Pass/Fail Reporting: The system gives a pass or fail result along with the values it measured. It keeps this data in a place that follows the rules of 21 CFR Part 11. This means it stores the information in a database. The system can also send out reports as PDF files.

Key Measurement Parameters

The PreForm Winner is engineered for preform quality testing across a wide set of dimensions, including.

• Custom user-defined dimensions
• External neck diameter
• Neck height
• Thread major diameter
• Thread minor diameter
• Thread pitch
• Thread height
• Collar diameter
• Body diameter
• Overall PreForm length
• Gate diameter
• Gate projection
• Radius, angles, and distances

How the Preform Vision Measurement System Overcomes CMM and Go/No-Go Limitations



Feature	CMM (Coordinate Measuring Machine)	Go/No-Go Gauges	PreForm Winner
Measurement method	Point-by-point, using a physical probe	Manual fit-check against a fixed gauge	Single image capture, full-surface vision measurement
Speed per part	Several minutes	Seconds, but only for one dimension at a time	Under 2 seconds for all dimensions
Contact with sample	Yes (probe touches the part)	Yes (gauge touches the part)	No—fully non-contact
Operator dependency	Moderate — requires skilled setup and probing	High—results can vary by operator	Minimal—one-click capture removes variability



PreForm Winner for Preform Quality Control

• This machine is really easy to use. It does everything for you with one click. You do not need a lot of training to use it.
• The rules of 21 CFR Part 11 are really important for companies that make medicines and package food. These companies need to follow the 21 CFR Part 11 rules. So the software is made to follow these rules. This way, pharmaceutical companies and food packaging companies can use the software.
• It measures things without touching them. This is good because it means the machine does not hurt the things it measures.
• It stores the data safely, and you can get a report in a non-editable PDF file so you can always go back. See what it measured.
• This machine is great for companies that make preforms, beverages, pharmaceuticals, edible oil, and cosmetic packaging.

Conclusion

Manual gauges and CMMs are just not good enough for the preform production that is being done today.



The PreForm Winner from Presto Instruments is a good tool for manufacturers. It helps them find problems with the Preform. This means they can make sure the preform is quality.

The PreForm Winner is faster and more reliable than other tools. It also keeps a record of everything it does. This is important for quality control. Quality control is usually a problem for manufacturers. With the PreForm Winner, it can actually be a good thing. Get this visual dimension measuring machine today!
