05-May-2026
Presto Instruments
Surface friction is a very important factor in the operational effectiveness of the sectors in the UAE of high-end packaging and production, i.e., the FMCG sector, the food processing and pharmaceuticals sector, and the flexible packaging sector. Examples of problems that are normally related to inappropriate friction properties are film sticking when high-speed filling is performed, disparate layer stacking of packaged items, or slipping on conveyor machine belts.
Even the slightest changes in the coefficient of friction (COF) in a region such as Dubai and Abu Dhabi, which are highly automated, can cause the following:
These problems warrant the need to test by a tester using a coefficient of friction tester in the UAE to safeguard the optimum power of the packaging.
Three-stage COF testing is a structured method used to evaluate frictional properties of packaging films under controlled conditions. It measures:
1. Coefficient of Friction (COF) at rest
The force required to start movement between two surfaces.
2. (Dynamic COF) Kinetic Coefficient of Friction
The force required to maintain motion once sliding begins.
3. Transitional Behavior
The difference between kinetic and static friction influences the performance in practice in the packaging lines.
An example of such a machine is that of a COF tester in the UAE that is used to measure these parameters in order to ensure that packaging films are used reliably in various conditions of handling and processing.
1. High-Speed Packaging Lines
Automated systems have to be with accurate tightness of friction so that they will not slip or jam.
2. Climate Influence
Films may change their surface properties due to the high temperature and humidity of the UAE.
3. Export-Oriented Manufacturing
Goods exported to other parts of the world should be able to retain their packaging without destruction or damage at different temperatures.
4. Material Optimization
Manufacturers are able to obtain desirable forms of friction through fine-tuning of formulations and coatings.
Standards from ASTM International and ISO define testing protocols for reliable and repeatable COF measurement.

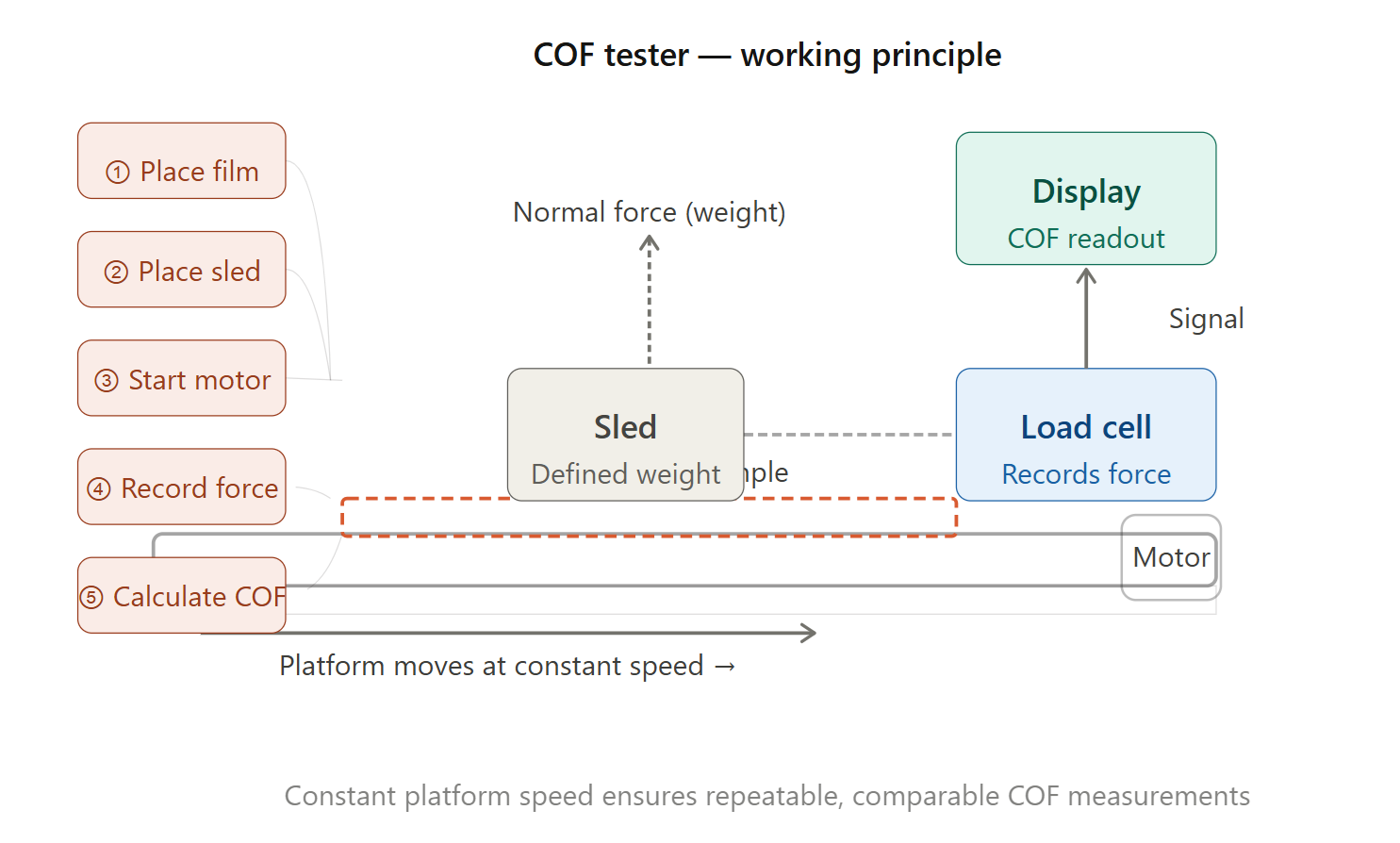

A coefficient of friction tester operates on a controlled sliding mechanism with precise force measurement.
Technical Components
Technical Operation
1. The test sample is placed on a flat platform.
2. A sled covered with the same or different material is placed on the sample.
3. The platform moves at a constant speed.
4. The force required to initiate and sustain motion is recorded.
5. Static and kinetic COF values are calculated.
Maintaining constant speed and alignment is critical to ensure accurate results.

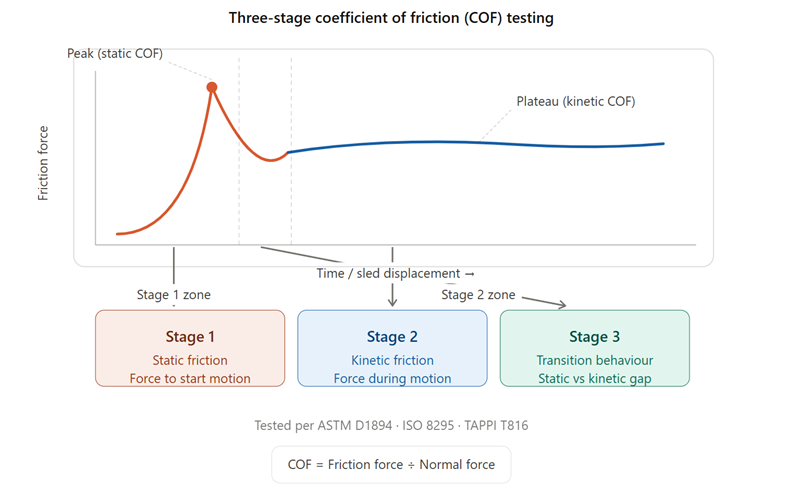

Stage 1: Static Friction Measurement
Determines the initial resistance to motion. High static COF can cause sticking issues in packaging lines.
Stage 2: Kinetic Friction Measurement
Measures resistance during continuous motion. Low kinetic COF may lead to slippage.
Stage 3: Transition Behavior Analysis
Evaluates the difference between static and kinetic values, which impacts real-time machine performance.
The three stages are useful to understand how to ensure the packaging engineers optimize the film behavior in the conditions of operation.
Making Precise Measures of the Load
Ensures accurate detection of minimal force variations.
Controlled Test Speed
Maintains consistent sliding conditions.
Digital Interface
Displays real-time COF values for analysis.
Repeatability
Provides consistent results across multiple tests.
Versatility
Suitable for films, sheets, laminates, and coated materials.
These features make the COF tester in the UAE essential lab testing equipment for packaging industries.
Flexible Packaging
Evaluation of films used in food and FMCG packaging
Pharmaceuticals
Medical packaging materials and blister pack.
Logistics & Warehousing
Slip resistance of packaging during stacking and transport
Printing & Laminates
Surface interaction testing of coated materials
Automotive & Industrial Films
Testing of protective films and coatings
A reliable COF tester supplier in the UAE supports these industries with accurate testing solutions.

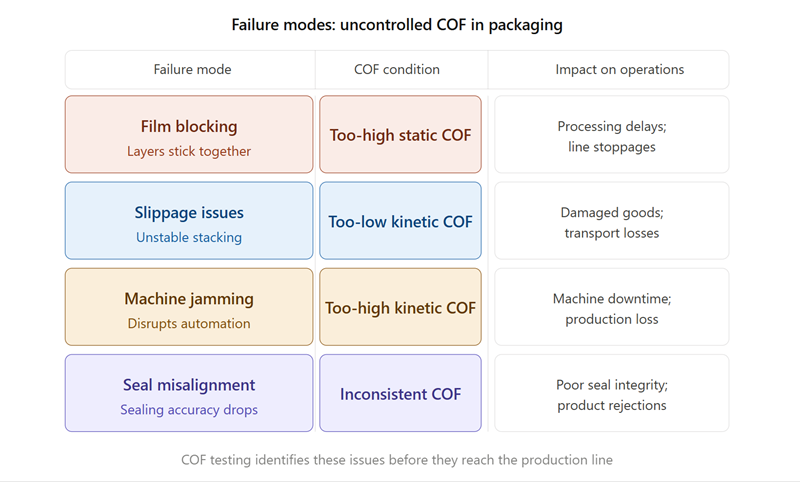

1. Film Blocking
Layers stick together, causing processing delays.
2. Slippage Issues
Low friction leads to unstable stacking.
3. Machine Jamming
High friction disrupts automated packaging lines.
4. Seal Misalignment
Inconsistent friction affects sealing accuracy.
A precision coefficient of a static friction tester helps identify and prevent these issues.
COF testing follows globally recognized standards such as
Compliance ensures results are accepted in global markets and audits.
The coefficient of friction tester price in the UAE depends on the following:
While evaluating a COF tester machine in UAE, focus on long-term performance and reliability rather than initial cost alone.
Presto Instruments is a trusted manufacturer of industrial testing machines and material testing instruments.
Engineering Strength
Advanced Features
Support & Services
In the case of UAE manufacturers, Presto Instruments provides viable solutions based on a high-performance packaging environment.
The friction control is of acute importance in the UAE manufacturing environment, where packaging efficiency and reliability rely on erroneous evidence of precision in friction control. A high-quality coefficient of friction tester in UAE enables manufacturers to maintain consistency, reduce failures, and meet global standards.
Investing in a reliable COF tester in the UAE ensures the following:
When you are considering the price of the coefficient of friction tester or you are in search of a reliable supplier of COF testers within the UAE, then contact Presto Instruments to have consultations with the expert, product specifications, and live demonstrations.
FAQs
1. What is a coefficient of friction tester used for?
It is used in the measurement of high frictional properties of films, laminates, and sheets.
2. How do the two concepts of COF, namely, the static and kinetic COF differ?
The starting movement is measured by a method known as the static COF, and the moving is measured by the kinetic COF.
3. How much would a COF tester cost in the UAE?
Prices are different depending on features and accuracy as well as the level of automation.
4. Which industries do COF tests in the UAE?
Plastic packaging, drugs, print, and logistics.
5. Why is COF testing important?
It ensures smooth processing, proper stacking, and reliable packaging performance.
