Material failures in manufacturing rarely occur without warning. Steel rebars snapping below specified yield strength, plastic films tearing during stretch application, and rubber seals cracking under tensile load—these are often symptoms of one underlying issue: inaccurate or improperly controlled mechanical testing.

In Nigeria’s expanding manufacturing base—serving construction, plastics, packaging, oil & gas components, and export-driven industries—incorrect tensile or compression data can result in:

• Structural non-conformance
• Batch rejection in export markets such as India and the Middle East
• Costly rework and warranty claims
• Failed third-party audits

When force and elongation measurements are unreliable, engineering decisions become guesswork. This is where a precision UTM testing machine becomes indispensable.

But what makes it “universal”? And how should Nigerian manufacturers select the right system?

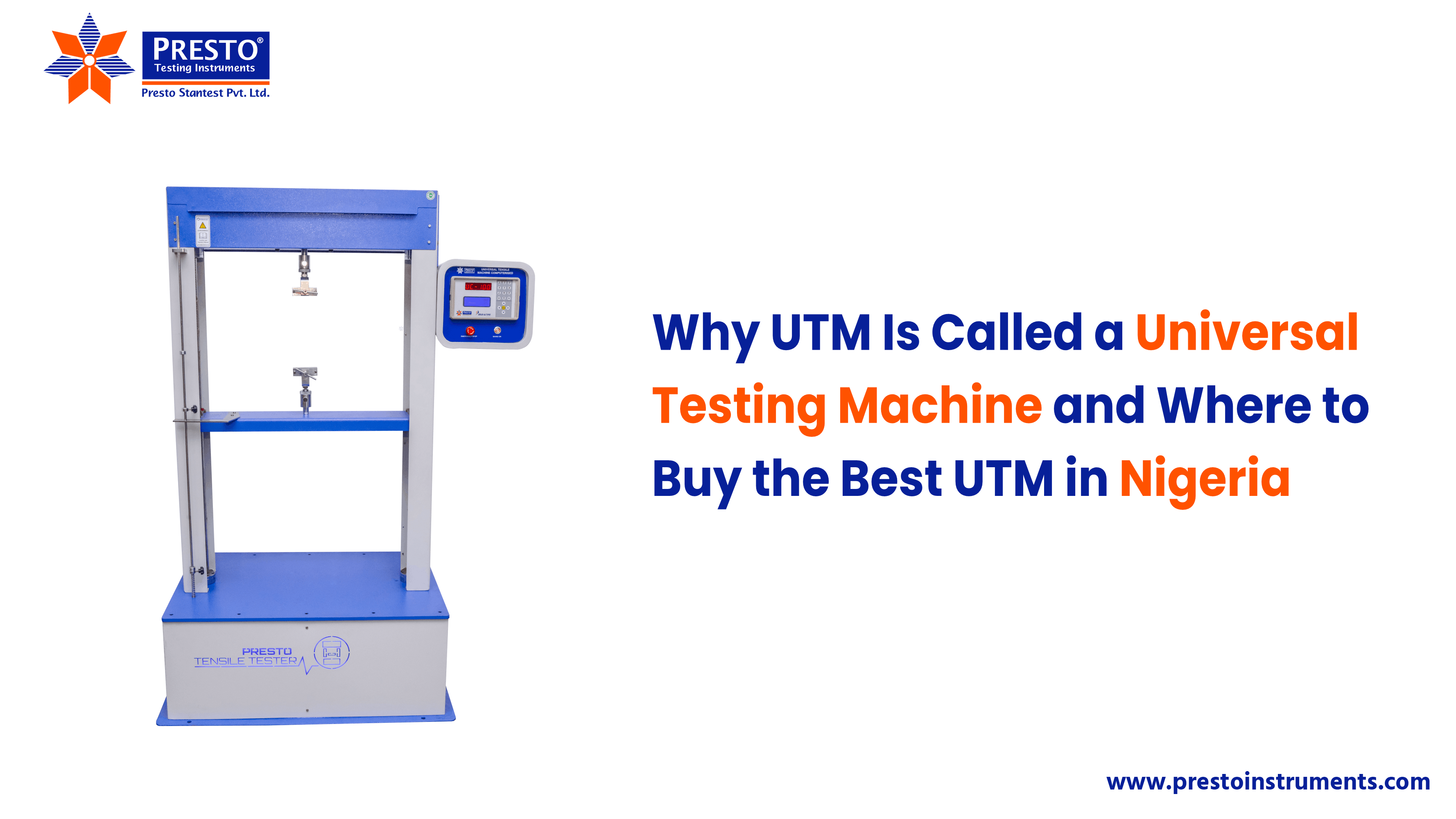

Why It Is Called a Universal Testing Machine

A Universal Testing Machine is termed “universal” because it performs multiple mechanical tests using a single load frame by changing fixtures and software configurations.

Unlike dedicated testers, a UTM can perform:

• Tensile testing
• Compression testing
• Flexural (3-point and 4-point bend) testing
• Shear testing
• Peel and adhesion testing

The same machine structure supports different test standards simply by changing grips or compression platens. This versatility is the characteristic of the universal testing machine that is applicable to varied materials being tested: metals, plastics, elastomers, composites, paper and packaging substrates.

Why Mechanical Testing is a critical control Variable

Mechanical testing validates design assumptions and ensures process consistency.

1. Structural Reliability

The tensile strength, yield strength, elongation at break, and Young's modulus are the factors that determine whether materials will endure real-life loads.

• Reinforcement bars must meet yield strength limits.
• Plastic films must sustain elongation without premature rupture.

2. Standards Compliance

Test methods are governed by bodies such as

• ASTM International
• International Organization of Standardization
• International Electrotechnical Commission
• TAPPI

Strain rate, load accuracy, and specimen geometry are the criteria that must be strictly adhered to in compliance.

3. Statistical Process Control

Accurate stress–strain data feeds into Cp/Cpk calculations. Load cell drift or encoder miscalibration directly skews capability analysis.

Working Principle of a UTM Testing Machine

A UTM machine test operates on electromechanical or servo-controlled loading with closed-loop feedback.

Core Components

• High-rigidity dual-column frame
• Precision ground ball screw assembly
• Servo motor with PID control
• Strain gauge-based load cell
• Displacement encoder of high resolution
• Interchangeable grips and fixtures

Technical Operation

• The specimen is mounted in tensile grips or compression platens.
• The servo motor provides the programmed strain rate to the crosshead.
• The load cell records force on a continuous basis.
• The encoder is used to measure the elongation or compression displacement.
• Stress (σ = F/A) and strain (ε = ΔL/L₀) are obtained with the assistance of software.
• A real-time stress–strain curve is generated.

It is necessary to have closed-loop control. It is used to provide a constant strain rate as is necessary with ASTM D638 (plastics) or ISO 6892 (metals). Open-loop systems can cause strain rate fluctuation, invalidating results.

Deeper Failure Mode Analysis in Tensile Testing

Understanding failure mechanisms improves design and material selection.

1. Brittle Fracture

Sudden break without significant elongation. Common in improperly heat-treated metals or aged polymers.

2. Ductile Necking

Localized reduction in cross-section before fracture, indicating plastic deformation.

3. Grip-Induced Failure

Failure occurring near the grips due to stress concentration or improper alignment.

4. Eccentric Loading

Lacking alignment imposes shear loads on the specimens, resulting in wrong tensile values.

Manufacturers of high-quality universal testing machines introduce universal testing systems with self-aligning grips and hard frames in order to reduce the eccentricity.

Technical Requirements to consider prior to buying

When selecting a UTM testing machine in Nigeria, consider:

• Load capacity (5 kN to 1000 kN depending on application)
• Load accuracy (±0.5% or better)
• Frame stiffness and deflection under full load
• Crosshead speed range and precision
• Data acquisition sampling rate
• Extensometer compatibility
• Overload protection

Frame deflection must remain negligible relative to specimen elongation. Excess structural compliance introduces measurement error.

Applications Across Industries in Nigeria

A UTM machine tensile test system supports:

Construction & Steel

• Rebar tensile testing
• Yield and ultimate strength validation

Plastics & Packaging

• Film tensile strength
• Seal strength testing
• Paper tensile testing

Rubber & Elastomers

• Elongation at break
• Compression set evaluation

Automotive & Engineering

• Component load testing
• Material characterization

Its versatility explains why it is considered the backbone of mechanical testing laboratories.

Compliance with International Standards

A precision UTM testing machine must comply with:

• ASTM D638 – Plastics tensile testing
• ASTM A370 – Steel testing
• ISO 527 – Plastics
• ISO 6892 – Metallic materials
• TAPPI tensile standards

Compliance requires calibrated load cells, verified strain rate control, and traceable certification—not just a standards label.

Where to Buy the Best UTM in Nigeria

To the manufacturers in Nigeria, choosing the appropriate supplier is highly technical as opposed to solely basing it on price.

Key Selection Criteria:

1. Engineering transparency (detailed specifications and validation data)
2. Calibration traceability
3. After-sales service availability
4. Spare parts support
5. Operator training

When evaluating the choices of other manufacturers of universal testing equipment, their priority should be structural rigidity, accuracy of closed-loop control, and reliability of software.

The Reason Presto Instruments is a Good Partner

Presto Instruments designs precision material testing instruments engineered for global compliance.

Engineering Strength

• Heavy-duty load frames with minimal deflection
• High-accuracy load cells
• Closed-loop servo control systems

Advanced Software Integration

• Real-time stress–strain plotting
• Multi-standard test configuration
• Data export for audit compliance

Lifecycle Support

• Installation and commissioning
• Preventive maintenance programs
• Calibration services with traceability
• Operator training

For manufacturers in Nigeria supplying India and global export markets, measurement reliability is non-negotiable. Presto Instruments provides technically robust solutions tailored to industrial requirements.

Make Mechanical Testing a Controlled Engineering Process

Occasionally referred to as "universal" given its ability to provide standard, mechanical testing of materials and industries in a one-solution machine, a UTM testing machine is known by this name.

Investing in a high-precision Universal Testing Machine ensures:

• Accurate tensile and compression validation
• Reduced product failure risk
• Audit-ready documentation
• Long-term quality assurance stability

Should you be considering the best place to purchase your UTM in Nigeria, then give Presto Instruments a call and request a technical consultation, quotation, or live demonstration today.

FAQs

1. What load capacity should I select?

It depends on your material and industry; common ranges are 5 kN to 1000 kN.

2. How frequently should calibration be done?

Typically once per year or as defined by internal QA procedures.

3. Can a UTM be customized?

Yes, fixtures, load capacities, extensometers, and software configurations can be tailored to specific applications.
