Model : PBG - 400 (2.0)
A Bursting Strength Tester measures the maximum pressure required to rupture materials such as paper, fabric, or corrugated board using a rubber diaphragm. This multi-directional strength test assesses how much internal pressure the material can withstand before bursting, making it essential for quality control in packaging, textile, and paper manufacturing.
The determination of a material's bursting or rupture force relies on a Digital Indicator, a vital parameter for assessing material quality. The Digital Bursting Strength Tester, available at our facility, operates through hydraulic pressure exerted beneath a rubber diaphragm onto the test sample. This versatile machine accurately evaluates the bursting strength of various materials like paper, corrugated cardboard, carton boxes, leather, cloth, or synthetic leather, quantifying the result in kg/cm².
Specifically tailored for paper and strong paperboard, this tester features a simple testing procedure. The specimen is secured between circular clamps and tightened using the provided geared handle. Increased hydraulic pressure is then applied until the specimen ruptures.
| Capacity | 40 kg/cm² |
| Display | LED (Digital) |
| Accuracy | ± 1% within 10% to 90% of entire range as per IS: 1828 with master gauge |
| Least Count/Resolution | 0.1Kg/cm2 |
| Power | 220V, Single phase, 50 Hz |
| Test fluid | Glycerinabout 98% purified (lab grade) |
| Rate of fluid displacement | 95 cc/minute |
| Motor | 1/4 HP Single Phase , 1440 rpm |
| Test Range | 1Kg / cm to 38 Kg / cm2 |
Highlights:
| Memory(to hold test value) | Up to 9 test values |
| Peak Hold Facility | Yes |
| Safety Switch | Yes |
| Material | Mild Steel |
| Finish | Powder coated Havel Gray & Blue combination finish and bright chrome / zinc plating for corrosion resistant finish |
| Dimensions | 540x 600x 450 mm |
1. Automatic Burst Factor Calculation: Calculates burst factor in paper automatically, enhancing efficiency.
2. Single Push Button Operation: Simplifies testing process for ease of use and convenience.
3. Microprocessor-Based Display: Ensures accurate test results with precision.
4. Peak Hold Facility: Stores maximum test values in memory for reference and analysis.
5. Memory Storage: Holds up to 9 test readings for convenient data retrieval.
6. Highly Accurate Results: Provides precise results under multidirectional force, ensuring reliability.
7. Strong Gripping Clamps: Secures test specimens firmly in place for consistent testing.
8. Grooved Test Specimen Holder: Prevents slippage and maintains specimen integrity during testing.
9. No-Slippage Design: Ensures uniform tightening of specimen with operating wheel, minimizing errors.
10. Bright LED Display: Provides clear visibility of test parameters and results.
11. Feather Touch Controls: Delivers responsive and intuitive operation.
12. Calibration Lock & Key Feature: Ensures calibration integrity and prevents unauthorized adjustments.
The Genie 2.0 Bursting Strength Tester is reliable and easy to use. It gives accurate results every time. Great support from the team!
Neeraj Dabral
Best bursting strength tester supplier in UAE
Varun
A BS tester (short for burst strength tester) is a machine that checks how much pressure a material like paper, cardboard, or fabric can handle before it breaks. It’s commonly used in industries like packaging and printing to make sure the material won’t fail when it’s being handled or shipped.
A BS testing machine works by holding a sample tightly in place and then applying pressure from below. It keeps increasing the pressure until the sample bursts. The machine then tells you how much force it took to break it. It’s a simple but very useful way to test the strength of packaging materials.
The bursting strength tester price can range widely depending on the model. A basic manual machine might be quite affordable, while a high-end digital tester will cost more. It’s best to talk to a bursting strength tester supplier to get a quote that matches your needs and budget.
There are several good bursting strength tester manufacturers and suppliers out there. Presto Instruments offer reliable machines, proper certifications, and helpful customer service. Don’t just go with the cheapest option — a good burst tester should last you years and give you consistent results.
Yes, there are. Some are manual and simple to use, while others are digital and come with extra features like automatic results, data saving, and touchscreens. A bursting strength tester digital version can be great if you’re doing a lot of testing and need fast, accurate results.
The RCT/FCT/Edge Crush Tester is a reliable tool designed to measure the crush strength of cardboard boxes and packaging containers. This instrument assesses the crushing resistance in units of Kg per unit length, providing essential data for ensuring packaging durability.
Read More
The Drop Tester, in compliance with IS:7028 Pt IV standards, serves as a crucial tool for evaluating the transport suitability of corrugated boxes, solid fibre boxes, and shipping containers. With its angular drop arrangement, it ensures precise assessment of transport worthiness from various angles, aiding manufacturers in maintaining package integrity through accurate drop strength tests.
Read More
The Presto Adhesion Strength Tester is designed to accurately measure the enduring adhesion or peelability of self-adhesive pressure-sensitive materials. Peel adhesion is assessed by determining the force required to remove a pressure-sensitive coated material from a standard test plate under specific conditions of angle and speed.
Read More

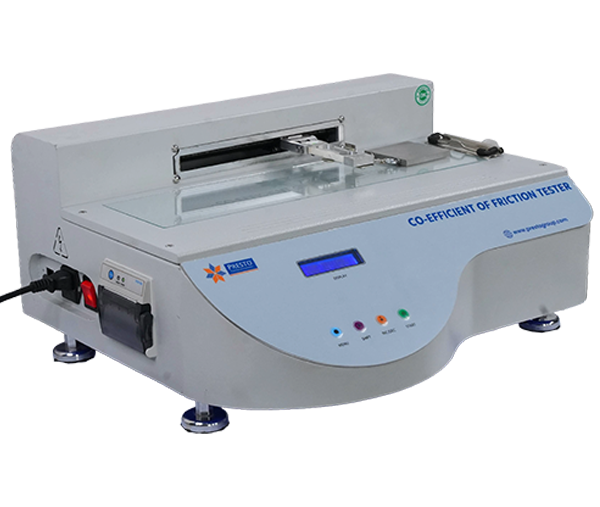

We all know that friction testing is considered to be a crucial aspect of quality control, especially in the case of flexible packaging films. The co-efficient of packaging can significantly impact how easily the package will slide or move during transit. A low COF can cause the package to slide too easily, risking damage to its contents. Conversely, a high COF can make the package difficult to handle, potentially causing delays.
