Model : PCT – 100 (C)
An Edge Crush Tester measures the edgewise compressive strength of corrugated cardboard. It determines the maximum load the cardboard can withstand when pressure is applied to its edge, in the same direction as the flutes. This value helps assess the stacking strength of packaging boxes and is critical for evaluating the durability and performance of corrugated packaging during transit and storage.
dge Crush Tester/RCT/FCT/ECT is a reliable tool designed to measure the crush strength of cardboard boxes and packaging containers. This instrument assesses the crushing resistance in units of Kg per unit length, providing essential data for ensuring packaging durability. The tester is a rigid support type compression device built to perform material tests according to TAPPI and ASTM standards on corrugated board and paper. It is suitable for conducting Ring Crush (RCT), Edge Crush (ECT), and Flat Crush (FCT) tests. The device features a tabletop model design and includes a dual system: a digital display for use when a computer is not available and inbuilt hardware with a software CD for comprehensive data analysis.
Presto Instruments is a leading manufacturer and supplier of Edge crush resistance tester in Kenya. For the best price, contact us for a quote or call now!
Key Specification :
Load Cell Capacity |
100 Kgf |
Display |
LED (Digital) |
Accuracy |
±2% at full load (with master load) |
Least Count/Resolution |
0.01 Kg |
Power |
220V, Single phase, 50 Hz |
Test Speed | 12.5± 2.5 mm/min |
Highlights :
Safety Switch |
Upward & Downward Limit Switches |
Material |
Mild Steel |
Finish |
Powder coated Havel Gray & Blue combination finish and bright chrome / zinc plating for corrosion resistant finish |
Dimensions | 600 x 524 x 934mm |
- Microprocessor-Based Display: Ensures accurate test results.
- Compression Strength Display: Shows the compression strength of test specimens.
- Separate Fixtures: Includes fixtures for Ring Crush, Edge Crush, and Flat Crush tests.
- Highly Accurate Results: Delivers precise results under compression force.
- Strong Gripping Clamps: Provides secure holding of test specimens.
- Bright LED Display: Easy-to-read display for test parameters.
- Inbuilt Calibration Facility: Simplifies calibration for accurate testing.
- Feather Touch Controls: User-friendly interface for easy operation.
- Graph Test Report: Displays Force vs. Time graph.
- Sample Test Reports: View up to 10 sample test reports on a single report.
- Email Facility: Easily email reports.
- PDF Report Format: Reports available in PDF format.
- Pass/Fail Criteria: Programmable criteria for quick assessment.
- Easy Data Management: Create product identification, test details, and more.
- Inbuilt Hardware/Software CD: Includes all necessary software and hardware for operation.
An ECT tester (short for Edge Crush Tester) is a type of testing equipment used to measure the edge-wise compressive strength of corrugated cardboard. This test is crucial for packaging manufacturers because it helps determine how much pressure the board can handle before collapsing. Simply put, it gives you insight into how sturdy your boxes are — which matters a lot when shipping or stacking goods.
An Edge Crush Resistance Tester measures the amount of force a piece of corrugated board can withstand when pressure is applied to its edge. This test, also known as the Edge Crush Test (ECT), simulates real-world stacking pressure, so businesses can predict how their packaging will perform during transport and storage.
When selecting an edge crush tester machine, consider your testing volume, required accuracy, and whether you prefer a digital or manual setup. For frequent, high-precision testing, a digital edge crush tester is ideal. Look for trusted suppliers who offer service support, calibration, and warranty options to make the most of your investment.
A digital edge crush tester offers more precision and ease of use compared to manual versions. It often features a digital display, automatic test cycle, and real-time data recording. This helps reduce human error and provides consistent, reliable results. Manual testers are more affordable but may require more hands-on effort and calibration.
The edge crush test is highly regarded because it closely replicates the real-world stress boxes face during shipping and storage. Unlike flat crush or burst tests, the ECT directly tells you how well a box will perform when stacked — which is often the most critical condition in distribution chains.
The Drop Tester, in compliance with IS:7028 Pt IV standards, serves as a crucial tool for evaluating the transport suitability of corrugated boxes, solid fibre boxes, and shipping containers. With its angular drop arrangement, it ensures precise assessment of transport worthiness from various angles, aiding manufacturers in maintaining package integrity through accurate drop strength tests.
Read More
The Presto Adhesion Strength Tester is designed to accurately measure the enduring adhesion or peelability of self-adhesive pressure-sensitive materials. Peel adhesion is assessed by determining the force required to remove a pressure-sensitive coated material from a standard test plate under specific conditions of angle and speed.
Read More
We all know that friction testing is considered to be a crucial aspect of quality control, especially in the case of flexible packaging films. The co-efficient of packaging can significantly impact how easily the package will slide or move during transit. A low COF can cause the package to slide too easily, risking damage to its contents. Conversely, a high COF can make the package difficult to handle, potentially causing delays.
Read More

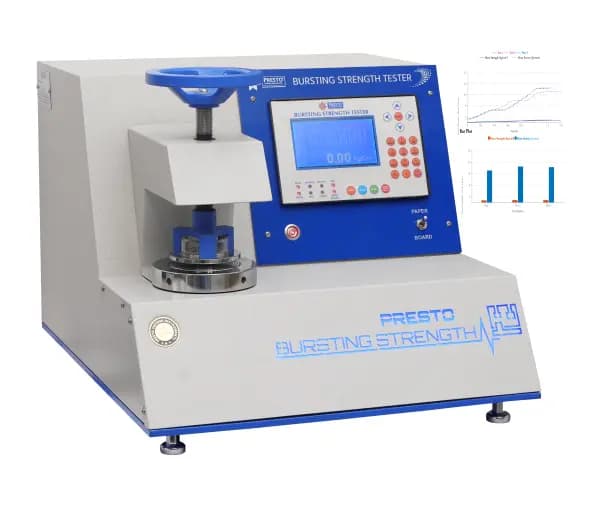

The Digital Pneumatic Bursting Strength Tester is equipped with a digital display and pneumatic clamping system, enabling the determination of bursting strength for various materials such as paper, paperboard, solid fiberboard, and corrugated board and boxes. This equipment is highly valued for its ability to deliver fast and accurate test results, consolidating multiple functionalities into a single instrument.
Read More
The box compression tester digital mini is a paradigm of technology advancement by the Presto Group. The instrument is created to help the manufacturers of small corrugated boxes used for packaging purposes in the bakery industry, minimal accessory industry, etc.
Read More
Scuffing refers to the abrasion that occurs when two materials rub against each other. The Scuff Resistance Tester is an essential tool for assessing the rub resistance, or damage caused by rubbing, of labels and various printed materials.
Read More
Plastic films find extensive use in the packaging sector owing to their pliability, resilience, and inert properties. They are the preferred choice of numerous packaging manufacturers striving to ensure precise product delivery to consumers. Evaluating these films by subjecting them to falling dart tests is a crucial quality assurance procedure mandated by manufacturers.
Read More

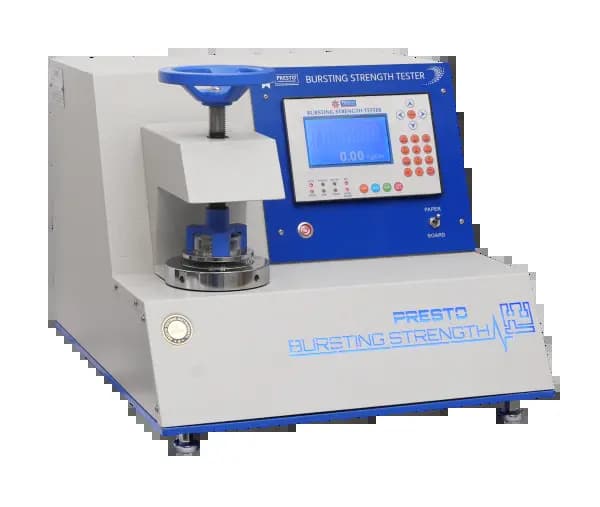

The determination of a material's bursting or rupture force relies on a Digital Indicator, a vital parameter for assessing material quality. The Digital Bursting Strength Tester, available at our facility, operates through hydraulic pressure exerted beneath a rubber diaphragm onto the test sample. This versatile machine accurately evaluates the bursting strength of various materials like paper, corrugated cardboard, carton boxes, leather, cloth, or synthetic leather, quantifying the result in kg/cm².
Read More
The box compression tester is a lab testing instrument designed by the Presto with precision to assess the ability of corrugated boxes to withstand compression. The test is performed by forcing downward pressure on the corrugated box through a motorized platform connected through the circular lead screws for smooth movement.
Read More

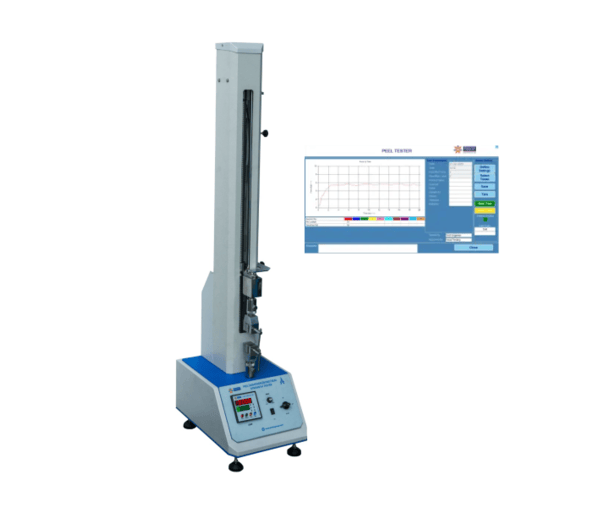

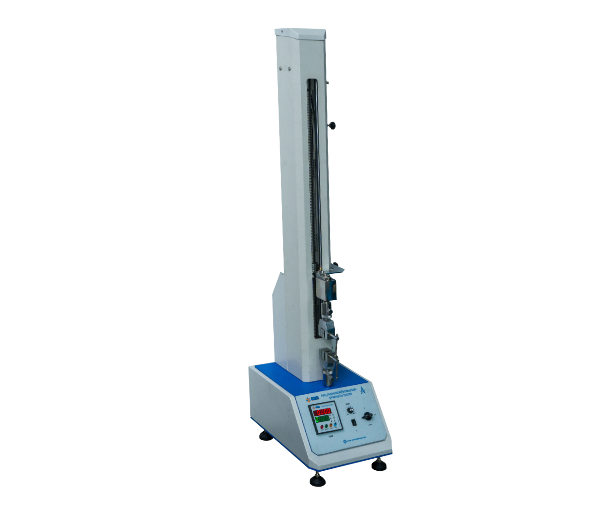

The Peel Adhesion/Bond/Seal Strength Tester is a reliable tool for quantifying the permanence of adhesion or peel ability of self-adhesive pressure-sensitive materials.
