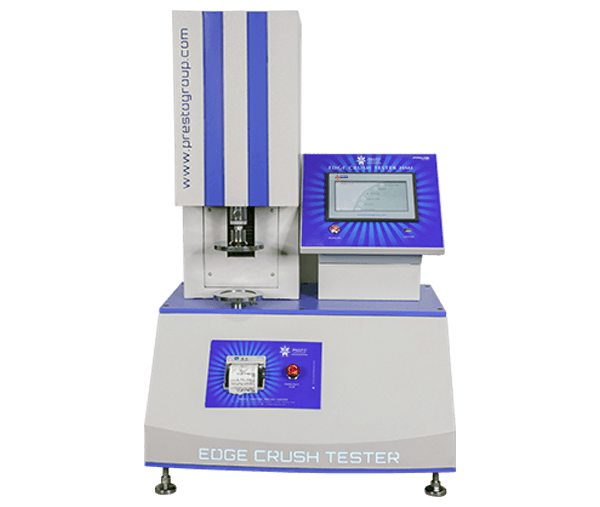

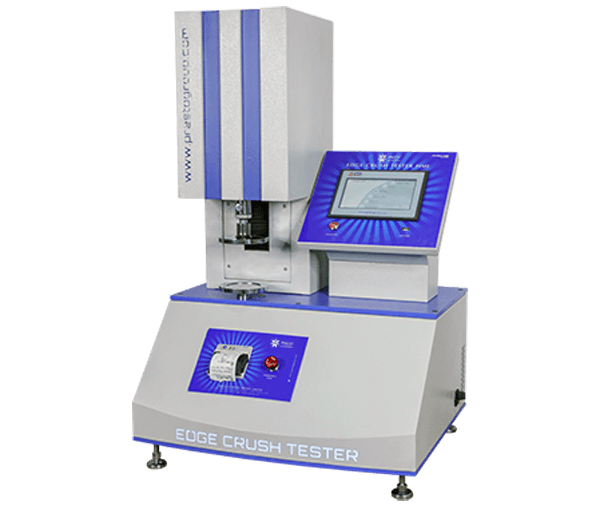

Model : PCT – 100 (C)

Edge Crush Resistance Tester Machine in Oman

An Edge Crush Tester measures the edgewise compressive strength of corrugated cardboard. It determines the maximum load the cardboard can withstand when pressure is applied to its edge, in the same direction as the flutes. This value helps assess the stacking strength of packaging boxes and is critical for evaluating the durability and performance of corrugated packaging during transit and storage.

The RCT/FCT/Edge Crush Tester is a reliable tool designed to measure the crush strength of cardboard boxes and packaging containers. This instrument assesses the crushing resistance in units of Kg per unit length, providing essential data for ensuring packaging durability. The tester is a rigid support type compression device built to perform material tests according to TAPPI and ASTM standards on corrugated board and paper. It is suitable for conducting Ring Crush (RCT), Edge Crush (ECT), and Flat Crush (FCT) tests. The device features a tabletop model design and includes a dual system: a digital display for use when a computer is not available and inbuilt hardware with a software CD for comprehensive data analysis.

Presto Instruments is a leading manufacturer and supplier of Edge crush resistance tester in Oman. For the best price, contact us for a quote or call now!

Features & Highlights



Key Specification :

 Load Cell Capacity

 100 Kgf

 Display

 LED (Digital)

 Accuracy

 ±2% at full load (with master load)

  Least Count/Resolution

  0.01 Kg

 Power

 220V, Single phase, 50 Hz

 Test Speed

12.5± 2.5 mm/min



Highlights :

 Safety Switch

 Upward & Downward Limit Switches

 Material

 Mild Steel

 Finish

 Powder coated Havel Gray & Blue combination finish and bright chrome / zinc plating for corrosion resistant finish

 Dimensions 600 x 524 x 934mm

- Microprocessor-Based Display: Ensures accurate test results.

- Compression Strength Display: Shows the compression strength of test specimens.

-  Separate Fixtures: Includes fixtures for Ring Crush, Edge Crush, and Flat Crush tests.

- Highly Accurate Results: Delivers precise results under compression force.

- Strong Gripping Clamps: Provides secure holding of test specimens.

-  Bright LED Display: Easy-to-read display for test parameters.

- Inbuilt Calibration Facility: Simplifies calibration for accurate testing.

-  Feather Touch Controls: User-friendly interface for easy operation.

-  Graph Test Report: Displays Force vs. Time graph.

-  Sample Test Reports: View up to 10 sample test reports on a single report.

- Email Facility: Easily email reports.

-  PDF Report Format: Reports available in PDF format.

- Pass/Fail Criteria: Programmable criteria for quick assessment.

- Easy Data Management: Create product identification, test details, and more.

- Inbuilt Hardware/Software CD: Includes all necessary software and hardware for operation.

An ECT tester (short for Edge Crush Tester) is a type of testing equipment used to measure the edge-wise compressive strength of corrugated cardboard. This test is crucial for packaging manufacturers because it helps determine how much pressure the board can handle before collapsing. Simply put, it gives you insight into how sturdy your boxes are — which matters a lot when shipping or stacking goods.

An Edge Crush Resistance Tester measures the amount of force a piece of corrugated board can withstand when pressure is applied to its edge. This test, also known as the Edge Crush Test (ECT), simulates real-world stacking pressure, so businesses can predict how their packaging will perform during transport and storage.

When selecting an edge crush tester machine, consider your testing volume, required accuracy, and whether you prefer a digital or manual setup. For frequent, high-precision testing, a digital edge crush tester is ideal. Look for trusted suppliers who offer service support, calibration, and warranty options to make the most of your investment.

A digital edge crush tester offers more precision and ease of use compared to manual versions. It often features a digital display, automatic test cycle, and real-time data recording. This helps reduce human error and provides consistent, reliable results. Manual testers are more affordable but may require more hands-on effort and calibration.

The edge crush test is highly regarded because it closely replicates the real-world stress boxes face during shipping and storage. Unlike flat crush or burst tests, the ECT directly tells you how well a box will perform when stacked — which is often the most critical condition in distribution chains.

book-demobook-demo

For more details & information

Related Products

Top Box Compression Tester Manufacturer in Oman

Top Box Compression Tester Manufacturer in Oman

Strength is a critical factor in the ever-evolving packaging and shipping industries that ensures product safety during transit. With reliable testing methods, businesses in Oman could avoid issues relating to damage, financial losses, and customer dissatisfaction due to substandard packaging. Investing in precise testing equipment like Box Compression Tester is no more than a necessity for industries that want to retain their reputation for quality and reliability.

Read More

Top Bursting Strength Tester Manufacturer in Oman

Top Bursting Strength Tester Manufacturer in Oman

Packaging is the only way through which safe transportation and storage of products are guaranteed within industries in the Oman region. Inadequate testing of packaging material may lead to damage to goods, increased costs, and loss of consumer confidence. To prevent such problems, Presto’s Bursting Strength Tester Genie 2.0—an advanced burst test machine—can be used to maintain the quality and durability of the packaging.

Read More

Top Drop Tester Manufacturer in Oman

Top Drop Tester Manufacturer in Oman

Product damage during shipping and storage is a significant problem within the industries of Oman. Numerous products, especially sensitive materials like electronics, glass, and packaged goods, easily break down due to impacts and drops. Without proper testing by Presto’s drop testers, these might go through shipping with major impacts causing loss of products in money terms, customer dissatisfaction, and brand reputation issues.

Read More

Peel Tester Computerised cum Digital

Peel Tester Computerised cum Digital

Manufacturers in Oman must ensure that they maintain high-quality standards and do not take any risks, they should emphasize the use of reliable testing equipment, such as a Peel Bond Tester. Packaging materials are bound to give the required peel strength, which ensures the security and satisfaction of consumers with the product.

Read More

Top Scuff Tester Manufacturer in Oman

Top Scuff Tester Manufacturer in Oman

Poor or unsound assessment of scuff resistance can lead to highly degradable products, affecting a visual appearance, customer dissatisfaction, and loss. Wear on easy-packaging and rapid scuffing can show poor visibility, which may not appeal to the consumer regarding the brand. It is essential to carry out accurate measurement and regulation by using a Scuff Tester Machine to determine the longevity of the visual appearance of the product.

Read More

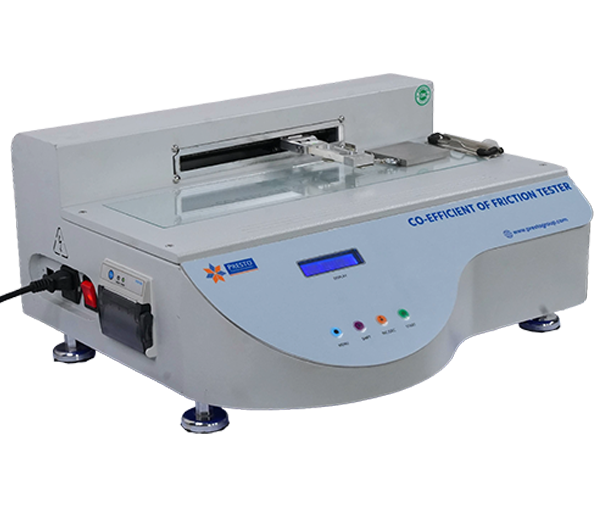

Coefficient of Friction Tester Manufacturer in Oman
