Model : PLHS-22 (150 mm)
The Laboratory Heat Sealer Prima Model is a high-precision sealing instrument designed for laboratory use, quality control testing, and research applications in the packaging industry. It allows users to accurately simulate and evaluate heat-sealing conditions for a wide range of flexible packaging materials such as laminates, foils, coated papers, and films.
The Laboratory Heat Sealer – Prima Model is a precision-engineered device designed for testing and sealing various flexible packaging materials under controlled conditions. It ensures consistent and accurate sealing performance, making it an essential tool for laboratories, R&D departments, and packaging quality control units. Built with a robust design and user-friendly interface, the Prima Model delivers reliable results that help manufacturers optimize their packaging materials and sealing parameters before full-scale production.
The Prima Model operates on the principle of applying controlled heat, pressure, and time to seal flexible packaging films. The user sets the desired temperature, sealing pressure, and dwell time on the digital control panel. Once the sample material is placed between the sealing jaws, the machine activates and applies uniform heat and pressure for the preset duration. After sealing, the sample can be easily removed for further testing, such as seal strength or peel tests. This simple yet precise process allows users to replicate actual production sealing conditions within a laboratory environment.
The Prima Model Laboratory Heat Sealer is widely used across industries such as:
Presto Instruments is a leading manufacturer and supplier of Laboratory Heat Sealer - Prima Model in Sri Lanka. For the best price, contact us for a quote or call now!
| Parameter | Details |
|---|---|
| Equipment Range | Ambient to 250°C |
| Sealing Temperature Working Range | Ambient to 230°C |
| Accuracy | ±1°C |
| Resolution (Least Count) | 0.1°C |
| Power Supply | 220V, Single Phase, 50Hz |
| Sealing Size | 150 × 15 mm |
| Temperature Controller | 4-Digit PID |
| Dwell (Heat Seal) Time | 0.1 – 99.9 sec |
| Timer | 4-Digit Digital |
| Heat Sensor | Pt-100, Platinum Resistance Temperature Detector (RTD) |
| Sealing Pressure | 2 – 6 Bar |
This model is widely used in:
The PLHS-22 (150 mm) is a precision-engineered Laboratory Heat Sealer designed to test and seal flexible packaging materials such as films, laminates, and foils under controlled temperature, pressure, and time settings. With a 150 mm sealing length, it is ideal for laboratory research, packaging development, and quality control applications.
The PLHS-22 (150 mm) typically offers:
Sealing width: 10 mm (custom options available)
Temperature range: Ambient to 250°C (depending on material type)
These adjustable settings allow precise control to simulate actual packaging conditions.
The heat sealer is suitable for a wide range of flexible packaging materials, including:
Plastic films (LDPE, HDPE, PP, BOPP, PET, etc.)
Laminates and multilayer films
Foils and coated papers
Medical-grade packaging materials
In Sri Lanka's developing packaging industry, the necessity for robust packaging solutions cannot be overlooked and is always critical. Increased demand for high-quality packaged goods across the globe also calls upon businesses to consider the handling and shipping toughness of packaging.
Read More
In the booming packaging and paper industries in Sri Lanka, ensuring that the paper, paperboard, and other raw materials are strong and do not break easily is of paramount importance. The improper equipment for testing would likely put the manufacturers at risk of producing inferior goods, which may not come up to the desired level of quality.
Read More
Durability and compression strength play a significant role in industries dealing with packaging, where the materials used are boxes and paperboard. The use of low-quality testing tools will always hold back Sri Lankan industries from making quality packaging materials, through which the product damage would increase while transporting and storing.
Read More
This is an apparatus that aims to represent the forces of impact that are derived when a product has dropped. The drop tester measures the capability of a product to withstand shock and impact, which is extremely important for packaging design and material selection. The machine usually drops its products from a certain height to a hard surface and records any derived damage or deformation as a result, to determine the impact resistance of the product.
Read More
In Sri Lanka's burgeoning packaging industry, proper integrity of seals and bonds is a significant factor concerning the safety of products in terms of quality and shelf life. With the inability to utilize a peel tester, the producers risk making up packages that would not meet the test for transportation and handling, as a result, products would leak, become contaminated, or spoil.
Read More
Durability is key to competitive packaging and labeling industries such as Sri Lanka's. Companies run the risk of delivering products with smudged or faded labels by not using a Scuff Resistance Tester. Product presentation and, thereby, brand reputation would suffer due to this. A disappointed customer will reduce shelf appeal, and subsequently, affect sales.
Read More
In the packaging, plastics, and textiles industries, the right surface friction is very important. Without a Coefficient of Friction (COF) Tester in Sri Lanka, especially a digital model, manufacturers in Sri Lanka risk having products that are inconsistent, of lower quality control, and do not meet international standards.
Read More
The RCT/FCT/Edge Crush Tester is a reliable tool designed to measure the crush strength of cardboard boxes and packaging containers. This instrument assesses the crushing resistance in units of Kg per unit length, providing essential data for ensuring packaging durability.
Read More
The Presto Adhesion Strength Tester is designed to accurately measure the enduring adhesion or peelability of self-adhesive pressure-sensitive materials. Peel adhesion is assessed by determining the force required to remove a pressure-sensitive coated material from a standard test plate under specific conditions of angle and speed.
Read More

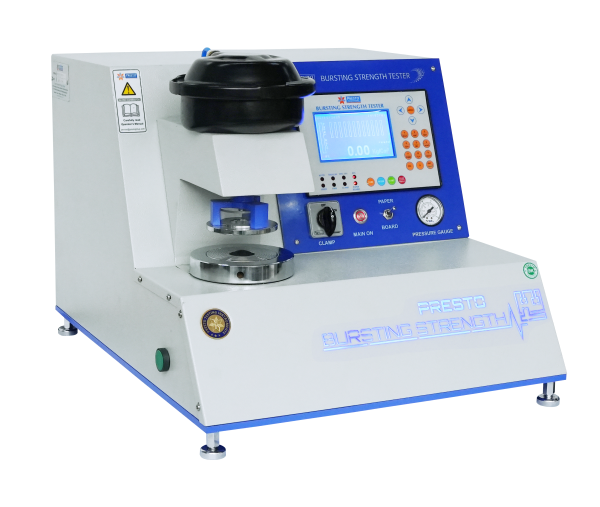

The Digital Pneumatic Bursting Strength Tester is equipped with a digital display and pneumatic clamping system, enabling the determination of bursting strength for various materials such as paper, paperboard, solid fiberboard, and corrugated board and boxes. This equipment is highly valued for its ability to deliver fast and accurate test results, consolidating multiple functionalities into a single instrument.
Read More
The box compression tester digital mini is a paradigm of technology advancement by the Presto Group. The instrument is created to help the manufacturers of small corrugated boxes used for packaging purposes in the bakery industry, minimal accessory industry, etc.
Read More
Plastic films find extensive use in the packaging sector owing to their pliability, resilience, and inert properties. They are the preferred choice of numerous packaging manufacturers striving to ensure precise product delivery to consumers. Evaluating these films by subjecting them to falling dart tests is a crucial quality assurance procedure mandated by manufacturers.
Read More
The drop tester proves invaluable for assessing the endurance of corrugated cartons. It features a motorized arrangement to lift the single-wing structure, operated by a pneumatic system. A wired remote control enables easy operation of the machine.
Read More
Flexible packaging materials like plastic sheets & laminations are used as layering on packaged products & items. These packaged products & items are stacked during transit & storage measures which can cause slipping in the case of less friction between the layers. To avoid such a situation a manufacturer has to ascertain a minimal friction value in the flexible packaging material.
Read More

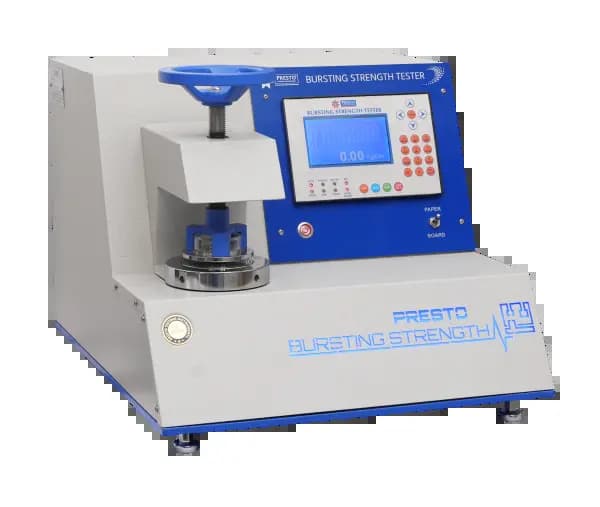

In Burst Genie 4.0 Digital Bursting Strength Tester Engineered with advanced digital technology, it features a 5-inch LCD display, single-button automatic operation, and intelligent functions like auto peak detection, auto reversal, and pass/fail criteria. This eliminates manual errors, enhances productivity, and ensures repeatable results. What makes the Burst Genie 4.0 unique is its compliance with international testing standards, including ASTM D3786-01, ASTM D3786-80a, IS 1060 Part-1 1987, ASTM D774, ISO 2758, and ISO 2759. Such adherence makes it a globally accepted solution for manufacturers who demand accuracy and reliability in quality control.
Read More

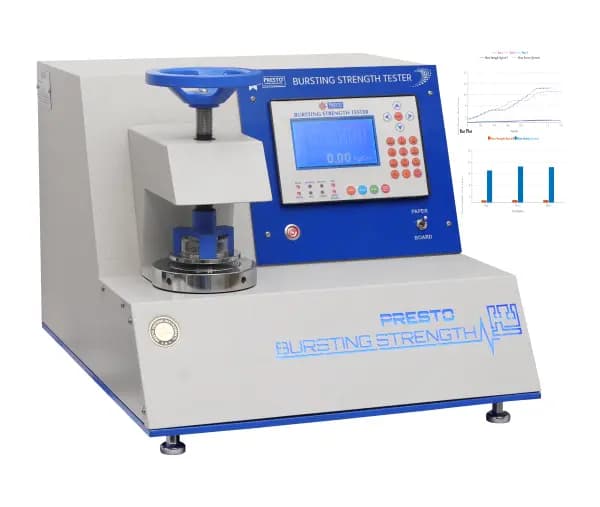

Burst Genie 4.0 is a robust bursting strength tester digital cum computerized model designed for precise evaluation of paper and packaging boards. With software-driven operation, accurate pressure transducers, and real-time display, it is ideal for laboratories, corrugated box manufacturers, and packaging quality control units.
Read More

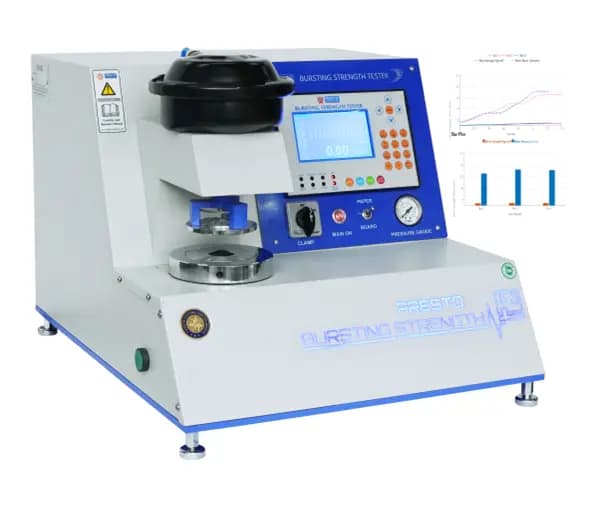

Bursting Strength Tester –Pneumatic Burst genie 4.0 Computerized is a fully software-controlled, pneumatic bursting strength tester digital cum computerised model designed to offer quick, reliable, and accurate bursting strength analysis for paper and board materials, making it a trusted tool for industrial quality control.
