Digital Profile Projector Manufacturer & Supplier in South Africa

Presto Instruments supplies digital profile projectors across South Africa for precise, non-contact measurement of small components. From automotive parts to medical devices, manufacturers use these instruments to check dimensions, angles, and edge profiles without touching or damaging the sample.

What Is a Digital Profile Projector?

"Presisiemeting begin met 'n goeie instrument." — In Afrikaans, this means "Precision measurement starts with a good instrument." That's the starting point for any South African workshop or quality lab evaluating small, high-tolerance parts.

A digital profile projector is a non-contact optical measuring tool that helps us measure things. It makes a picture of a small thing on a screen. The people using it can then see how big it is, what angles it has, and what shape it is. This digital profile projector is also known as a comparator or a shadowgraph. We use the digital profile projector to get a look at the thing we are measuring.

The optical comparator is widely used in manufacturing, the automotive industry, the aerospace industry, and the toolmaking industry. The optical comparator works by projecting light onto a part to create a big shadow of the part. The optical comparator uses lenses and mirrors to carry the image of the part to a screen.

Digital Profile Projector: At a Glance

Question	Quick Answer
What is a profile projector?	An optical measuring system used for dimensional inspection.
What does it measure?	Dimensions, angles, contours, and profiles.
Is it contact or non-contact?	Optical profile inspection is performed without physically contacting the projected image.
Where is it used?	Manufacturing, automotive, aerospace, tooling, and quality control.
Why use a digital model?	Digital measurement makes dimensional inspection easier to read and document.

How a Profile Projector Works

"Ukukala okuhle kudinga amathuluzi afanele." — In isiZulu: "Good measurement needs the right tools." That principle guides the design of every profile projector component.

The optical path follows a fixed sequence. Light passes through, and the lenses make the picture larger. The image lands on a projection screen for measurement.

A profile projector consists of five core components: a light source, a projection lens, a stage, a projection screen, and a digital readout system.

A profile projector consists of five core components. The light source is a bulb that illuminates the part, producing contour (back) or surface (top) illumination depending on the part. The projection lens is a high-quality optical lens. It enlarges the part's silhouette to a set magnification, typically 10x to 100x. The stage is a precision glass platform holding the part, with X, Y, and sometimes Z-axis movement via handwheels. The projection screen is a ground-glass screen that displays the magnified shadow image for measurement. DRO displays X, Y, and sometimes angular measurements digitally for precise dimensional data.

Why Presto is a Trusted Digital Profile Projector Manufacturer in South Africa

"Ukungathinti kuvikela isampula." — In isiZulu: "Not touching protects the sample." That's the core advantage of optical measurement over contact-based tools.

Benefit	Description
High measurement accuracy	Magnification helps us see size and shape differences. This means we can reduce the mistakes that people make. Magnification is really helpful for quality control when we need to be very precise. We can use magnification to make sure things are made to high standards.
Non-contact inspection	Light-based measurement does not harm the part. This is important for small parts or flexible parts. These types of parts can be changed by tools. Light-based measurement keeps them safe. It is useful for parts that're delicate. It helps to keep the parts in their shape.
Easy comparison with standards like ASTM B89.4.1	When you are looking at grids and overlays on the screen, the operators can see a part's outline. Compare it to standard profiles. This really helps with finding defects because it makes the process go faster. The operators can look at the part's outline and the standard profiles at the same time, with the grids and overlays on the screen.
Suitable for complex geometries	The big shape of the silhouette is really helpful because it lets us take a look at curves and threads and other shapes that are not normal. This is good because other tools have trouble with these kinds of things.

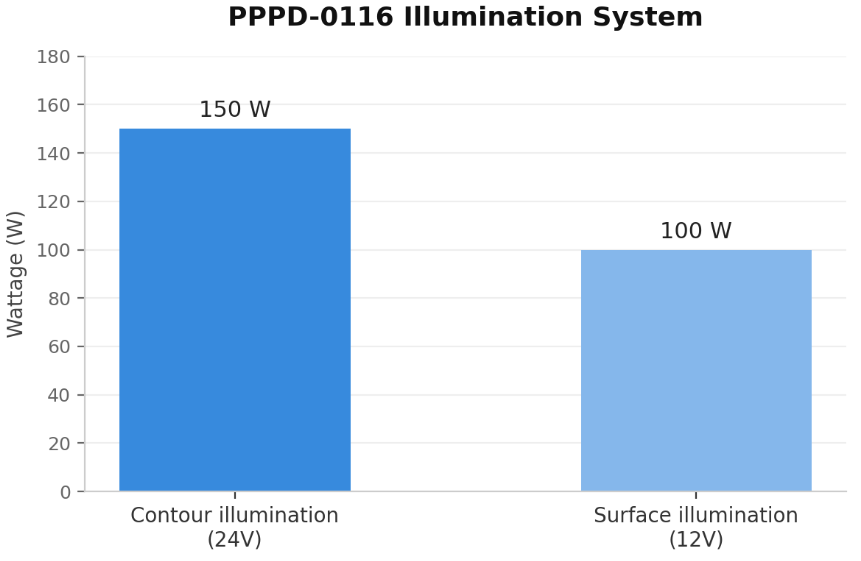

The PPPD-0116 uses two independent lighting systems—a stronger 150W contour illumination for edge and silhouette measurement and a 100W surface illumination for viewing surface detail. They work together to let the projector switch between the outline and the surface of a part depending on what the part needs.

Call +91 92109 03903 or email response@prestogroup.com

Who Needs a Digital Profile Projector?

A digital profile projector is useful for manufacturers, engineering companies, tool rooms, quality-control laboratories, and R&D facilities that need accurate inspection of small or complex components.

Where South African Industries Use Profile Projectors

Precision manufacturing across South Africa — from Gauteng's automotive plants to Durban's electronics assemblers — relies on non-contact inspection. A profile projector for metal component inspection is especially useful in tool-making, where cutting tools, dies, punches, and molds all require precise edge, angle, and wear checks. Profile projectors support four confirmed sectors:

Industry	Application
Automotive	The person in charge checks the engine parts, the gears, the shafts, and the machined parts. They make sure the dimensions of the engine parts are correct. They also check the angles of the engine parts, the gears, the shafts, and the machined parts.
Electronics and PCB manufacturing	We can use this tool to check electronic parts like connectors and pins without breaking them. It is also good for looking at parts and the edges of printed circuit boards. This way we can measure things, like microparts and the edges of circuit boards, without damaging them during the inspection.
Medical devices	The person in charge of this job looks really closely at instruments, implants, syringes, and tiny mechanical parts to ensure the right size.
Tool-making	Check cutting tools, dies, punches, and molds—make sure the edges have the correct shapes, the proper curves, and the right amount of damage or wear.

Conclusion

"Ukuzimisela kukhulisa ikhwalithi." — In isiZulu: "Dedication grows quality." That way of thinking affects the tools they choose—a digital profile projector helps manufacturers in South Africa check complicated parts in a precise and contact-free way. It works well for quality control in electronics, medical devices, and tool-making. Presto Instruments makes optical systems that give correct measurements and are easy to use. These systems are built to last. Come with technical support.

FAQs

1. What is a digital profile projector used for?

A digital profile projector is a tool that helps check the measurements, form, and borders of components. This device is useful for making sure that small parts are exactly the size and shape. It looks at the edges carefully to see if they are correct. People who work with items often use this equipment to double-check their work.

2. What industries use profile projectors in South Africa?

The automotive industry, the electronics industry, and the PCB manufacturing industry all use profile projectors for precision inspection. So do the medical device manufacturing industry and the tool-making industry.

3. What is the digital profile projector price in South Africa?

The price depends on the brand and the model. It also depends on the things it has, like DRO and the type, which can be vertical or horizontal. If you want to know how much it costs in South Africa, you should get in touch with Presto Instruments directly. They will give you a quote that is just for South Africa.

4. Why choose Presto Instruments as a profile projector supplier in South Africa?

Presto gives us optical systems that work well. We get results when we measure things with Presto. It is also easy to use. The people who made Presto are always ready to help us with any problems. Presto optical systems are built to last.

5. Can a profile projector work with delicate or flexible parts?

It uses light to take a picture without actually touching it. So the soft parts, the small parts, or the flexible parts do not get damaged when we are looking at them. The light helps to keep the small parts and the flexible parts safe during the inspection.
