Precision Thickness Gauge - Magna Mike: Advanced Measurement Tech by Presto

Measuring the thickness of materials can be very challenging when precision and quality are considered. Among such industries as manufacturing, aerospace, automotive, and construction, where precision matters for integrity and safety reasons, a product that meets this high requirement must be reliable and efficient. Magna Mike is an instrument specifically designed with such expectations, aiming at delivering extremely accurate non-destructive measurements of materials in different forms.

What is Precision Thickness Gauge?

It is an instrument that measures the thickness of materials with great accuracy. Unlike other methods that may destroy the material by cutting or damaging it, a precision thickness gauge will offer a non-destructive method that does not ruin the product. Gauges are an essential tool to measure thickness in manufacturing, quality control, and maintenance. They check the condition of materials, ensure compliance, and avoid defects.

Why Presto?

Presto is a respected and trusted leader in the delivery of advanced testing solutions, offering high-quality, reliable, and precision measuring instruments built with durability and compliance for optimal performance within industrious operations and strict quality benchmarks.

How does Magna Mike Work?

The working principle involved in the Magna Mike Precision Thickness Gauge is its magnetic target mechanism. Below is the step-by-step process:

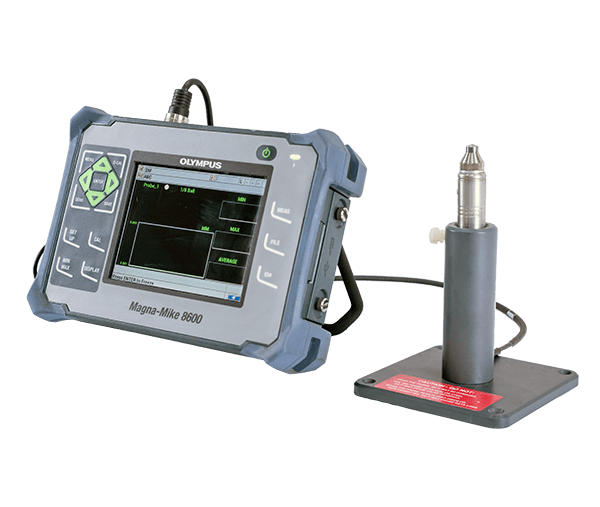

The Probe and Magnetic Target

A probe is placed on top of the material to measure. The probe creates a magnetic field that interacts with the surface of the material, and a magnetic target may be attached to the side of the material if required.

Step-by-Step Measurement Procedure

1. Probe Placement: The probe is placed on the surface of the material by the operator.

2. Generation of Magnetic Field: The probe generates the magnetic field, which influences the surface of the material.

3. Distance Measurement: By measuring the distance between the probe and the target, the gauge calculates the thickness of the material based on the magnetic influence.

4. Display of Results: The thickness is displayed instantly on the thickness gauge meter screen with high accuracy.

Technical Specifications

• Data Storage – 2 GB Micro SD card

• Battery life – 12 h to 13 h (lithium-ion)

• Power requirements – 100 VAC to 120 VAC, 200 VAC to 240 VAC

• Display Type – Full VGA (640 x 480 pixels) transflective color LCD

• Min/Max capture mode – Captured at a measurement rate of 60 Hz

• Rate of Display update – 4, 8, 16 and 20 Hz

• Alarm – High and Low alarms

• Data logger – Internal file-based alphanumeric data logger

• Maximum Thickness range: Up to 25.4mm (1.00 in.)

• Minimum Thickness range: 0.001mm (0.0001 in.)

Comparative Advantage

The Magna Mike Precision Thickness Gauge excels due to the following advantages:

• Easy Calibration: Magna Mike ensures smooth gauge calibration, providing reliable results without hassle.
• Reliability: Built to last, this thickness-measuring device ensures consistent performance, making it ideal for industries with strict quality control.
• Innovative Technology: Leveraging advanced magnetic technology, it outperforms other devices like steel thickness gauges or digital coating thickness gauges.

Dos and Don’ts of Using Magna Mike

Dos

• Always calibrate the thickness measurement instrument before usage.
• Use the appropriate probe for the material.
• Keep the gauge measuring tool clean and dry for accurate readings.

Don’ts

• Avoid using incompatible materials.
• Prevent dropping or impacting the gauge measuring device.
• Never skip maintenance and micrometer calibration.

Tips for Maintenance

• Calibration: Conduct regular measurement calibration to ensure accuracy.
• Probe Care: Clean probes after every use to avoid residue buildup.
• Storage: The gauge instrument should be stored in a secure and dry location.

FAQs

1. What materials can the Magna Mike measure?

The Magna Mike can measure a range of materials, including metals, plastics, rubber, coatings, and composites. It works well with ferrous materials and can be calibrated for non-ferrous materials.

2. How do I choose the right probe for my application?

Selection depends on the materials and thicknesses you work with. For proper guidance, contact Presto’s customer support, or refer to the user manual.

3. What are the environmental limitations of the Magna Mike?

Magna Mike must not be exposed to extreme temperatures, humidity, or corrosive substances.
