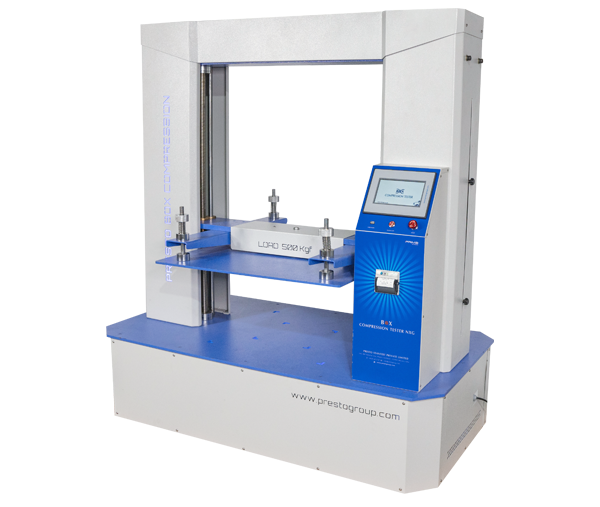

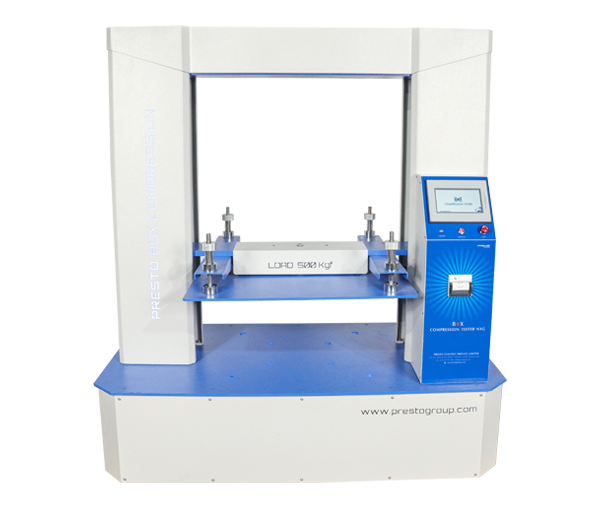

Box Compression Testing Machine NXG Model

What is a Box Compression Tester NXG Generation Model?

A Box Compression Tester NXG Generation Model is a laboratory testing machine designed to determine the compression strength of boxes and other packaging containers. The test evaluates how much compressive force a box can withstand when pressure is applied from the top.

The Presto Box Compression Tester has a surface to test things on and a motor that helps push down on the thing being tested. This helps manufacturers and people who work in labs see how well packaging holds up when something is put on top of it. The Presto Box Compression Tester is useful for testing packaging before it is used to store things, stack things, handle things, or move the Presto Box Compression Tester-tested packaging from one place to another.

The NXG/NXT Generation design combines the robust mechanical structure of a conventional compression tester with an advanced human-machine interface (HMI) touch panel. The system provides programmable testing, digital result handling, test profiles, trend graphs, and automatically generated reports.

The model is also designed with power and communication isolation features to help protect the control system from electrical spikes and communication noise.

How Does a Box Compression Testing Machine with NXG Model Work?

The testing process starts by placing the box or packaging sample centrally on the flat compression platform. The machine then applies a controlled downward compression force through its motorized mechanism.

As the compression force increases, the system monitors the response of the test specimen. Depending on the selected test method, the test can be controlled using force, displacement, or time. The microprocessor-based controller manages the testing process and helps deliver consistent measurements.

The NXG/NXT Generation model also provides a pre-load facility, peak-hold function, programmable test speeds, home-return operation, proof testing, and multiple stop methods. These features allow laboratories to configure the testing process according to their testing requirements.

During testing, the maximum test result can be retained using the Peak Hold facility. The instrument can also generate a load-versus-displacement trend graph, helping users review the behaviour of the packaging sample during compression.

The system supports digital reporting as well. The document specifies a PDF test report generated directly from the HMI and a real-time editable Excel/CSV test report for straightforward data handling.

Benefits of a Box Compression Testing Machine with NXG Model

1. Consistent Compression Testing

Controlled compression helps laboratories evaluate packaging samples under repeatable test conditions. The microprocessor-based controller and uniform compression force support accurate and consistent test results.

2. Multiple Testing Methods

The NXG/NXT Generation model supports different testing approaches based on force, displacement, or time. This provides flexibility when establishing different test requirements.

3. Easy Touchscreen Operation

The tester incorporates a large touch-screen LCD interface with capacitive touch controls. Its HMI is designed to make test setup and operation easier for laboratory users.

4. Programmable Test Profiles

Standardized test recipes and programmable test speeds help users establish defined testing conditions. The system also includes multi-speed programming and a home-speed feature.

5. Peak Hold Function

The Peak Hold facility allows the maximum test result to be retained in memory. This can be useful when reviewing the highest compression value reached during a test.

6. Trend Graph Analysis

A load-versus-displacement trend graph is available for reviewing the relationship between applied load and displacement during testing.

7. Digital Test Reporting

The system can generate PDF test reports directly from the HMI. The document also specifies real-time editable Excel/CSV reporting, making test information easier to transfer and manage.

8. Protection for the Control System

Power isolation circuits are incorporated to help protect the HMI from accidental electrical surge interference. Communication isolation is also provided for COM and Ethernet interfaces to improve communication stability.

9. Remote Monitoring Capability

The VNC remote-monitoring feature allows remote control using mobile devices, providing an additional option for monitoring the system.

10. Multilingual Operation

The HMI supports input in 16 different languages, making the system suitable for users working in different language environments.

Applications of Box Compression Tester NXG Generation Model

A box compression tester is really helpful in places where packaging has to deal with things like being stacked, stored, moved around, and shipped. When you push down on the box with a force, makers can check how strong the box is before it gets sent out to be sold.

Typical practical applications include the following:

• Corrugated box testing – evaluating the compression performance of cartons and shipping boxes.
• Packaging quality control – checking whether packaging maintains the required structural strength.
• Stacking performance evaluation–assessing how packaging responds to compressive loading.
• Laboratory research and development – comparing packaging designs and materials during product development.
• Production quality checks – supporting routine compression testing of packaging samples.
• Transportation packaging evaluation – helping manufacturers assess packaging strength before products are shipped.
• Proof testing – using the available proof-test function for defined testing requirements.

The instrument is available with different platform sizes and load-cell capacities, while the document specifically lists a 750 × 750 mm platform for the stated configuration.

Presto Instruments is a leading manufacturer and supplier of Box Compression Testing Machine NXG Model. For the best price, contact us for a quote or call now!
