Model : PBG - 400 (2.0)
The Bursting Strength Tester (Genie 2.0) is a digital laboratory instrument designed to measure the bursting strength of materials like paper, cardboard, corrugated fiberboard, textiles, leather, and various packaging materials. It determines how much pressure a material can withstand before it ruptures.
The determination of a material's bursting or rupture force relies on a Digital Indicator, a vital parameter for assessing material quality. The Digital Bursting Strength Tester, available at our facility, operates through hydraulic pressure exerted beneath a rubber diaphragm onto the test sample. This versatile machine accurately evaluates the bursting strength of various materials like paper, corrugated cardboard, carton boxes, leather, cloth, or synthetic leather, quantifying the result in kg/cm².
Specifically tailored for paper and strong paperboard, this tester features a simple testing procedure. The specimen is secured between circular clamps and tightened using the provided geared handle. Increased hydraulic pressure is then applied until the specimen ruptures.
Presto Instruments is a leading manufacturer and supplier of Bursting Strength Tester Genie 2.0 in Ghana. For the best price, contact us for a quote or call now!
| Capacity | 40 kg/cm² |
| Display | LED (Digital) |
| Accuracy | ± 1% within 10% to 90% of entire range as per IS: 1828 with master gauge |
| Least Count/Resolution | 0.1Kg/cm2 |
| Power | 220V, Single phase, 50 Hz |
| Test fluid | Glycerinabout 98% purified (lab grade) |
| Rate of fluid displacement | 95 cc/minute |
| Motor | 1/4 HP Single Phase , 1440 rpm |
| Test Range | 1Kg / cm to 38 Kg / cm2 |
Highlights:
| Memory(to hold test value) | Up to 9 test values |
| Peak Hold Facility | Yes |
| Safety Switch | Yes |
| Material | Mild Steel |
| Finish | Powder coated Havel Gray & Blue combination finish and bright chrome / zinc plating for corrosion resistant finish |
| Dimensions | 540x 600x 450 mm |
The Genie 2.0 Bursting Strength Tester is reliable and easy to use. It gives accurate results every time. Great support from the team!
Neeraj Dabral
Best bursting strength tester supplier in UAE
Varun
The balloon burst tester is a lab testing instrument ergonomically created by the Presto to assist the manufacturers from the paper & packaging industry in identifying the seal integrity of the tested material. This packaging testing instrument assesses the seal integrity of pouches and other flexible packaging materials by injecting air into them until the material bursts due to the air pressure acting as a force upon its walls from within.
Read More
The RCT/FCT/Edge Crush Tester is a reliable tool designed to measure the crush strength of cardboard boxes and packaging containers. This instrument assesses the crushing resistance in units of Kg per unit length, providing essential data for ensuring packaging durability.
Read More
The Drop Tester, in compliance with IS:7028 Pt IV standards, serves as a crucial tool for evaluating the transport suitability of corrugated boxes, solid fibre boxes, and shipping containers. With its angular drop arrangement, it ensures precise assessment of transport worthiness from various angles, aiding manufacturers in maintaining package integrity through accurate drop strength tests.
Read More
A precision digital instrument designed to measure the peel, bond, and seal strength of adhesives, laminates, films, tapes, and packaging materials. It provides accurate, repeatable force measurements with user-friendly controls, ideal for quality control, R&D, and material performance testing.
Read More

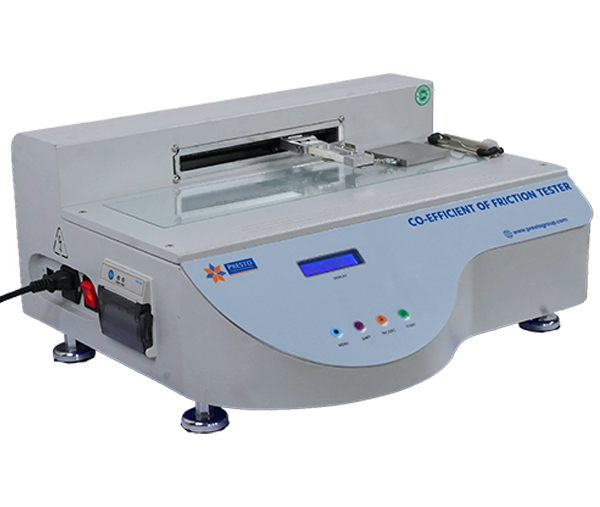

We all know that friction testing is considered to be a crucial aspect of quality control, especially in the case of flexible packaging films. The co-efficient of packaging can significantly impact how easily the package will slide or move during transit. A low COF can cause the package to slide too easily, risking damage to its contents. Conversely, a high COF can make the package difficult to handle, potentially causing delays.
