PET bottles find widespread use across industries, particularly in bottling various products like carbonated drinks. Yet, a recurring challenge in bottling carbonated beverages is the risk of PET bottles bursting due to high pressure or inadequate strength. To address this concern, manufacturers must rigorously test the burst strength of PET bottles using appropriate methods and testing equipment. The Touchscreen Model of the Bottle Burst Tester emerges as an ideal choice among testing instruments for accurately assessing bottle strength.

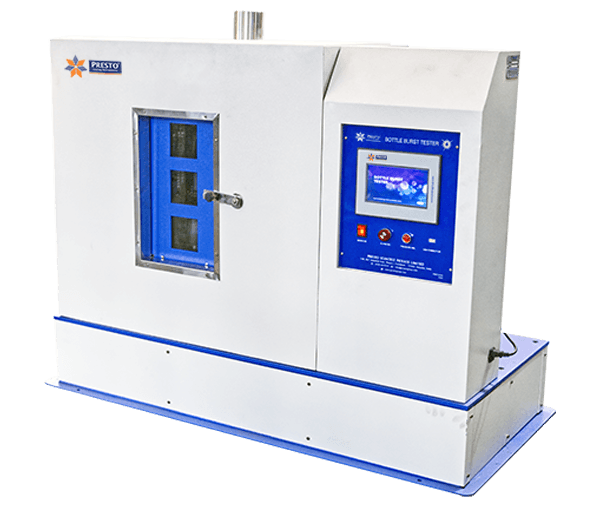

The Bottle Burst Tester-Touchscreen is a reliable testing machine specifically designed for conducting bottle burst tests on PET bottles, ensuring minimal pressure while accurately assessing volume expansion of test samples. Our innovative testing instrument, the Bottle Burst Tester - Touch Screen, employs advanced technology to precisely measure the Burst Strength of PET bottles under pressurized air conditions.



Features & Highlights

    • Controls: Pneumatic
    • Display: HMI Based touchscreen
    • Pressure range: Up to 260 psi
    • Pressure Display: HMI TFT colour screen 7
    • Accuracy: ± 2% at full range.
    • Power: 220V, Single phase, 50 Hz
    • Input Pressure: 290 psi
    • Minimum diameter of Bottle Neck: 21 mm
    • Maximum Diameter of Bottle Neck: 24.6 mm
    • Maximum Bottle Diameter: 150 mm
    • Pressure Hold Facility: Yes



Our Bottle Burst Tester Touchscreen model offers a comprehensive suite of features and highlights, ensuring precise and reliable testing of PET bottle burst strength:

- State-of-the-Art HMI Touchscreen: Incorporates the latest Human Machine Interface (HMI) touchscreen technology for excellent system controls and user interaction.

- Pressure Setting and Preset Timer Functions: Enables accurate and repeatable testing with pressure setting and preset timer functions integrated into the HMI for precise control.

- Program Profile Selection: Allows for easy selection of test parameters and execution of tests through programmable profiles, enhancing efficiency and convenience.

- Real-Time Test Status Display: Provides instant feedback on the current test status, ensuring transparency and facilitating monitoring during testing procedures.

- **High Accuracy under Pneumatic Pressure Control:** Ensures highly accurate test results by maintaining pneumatic pressure control throughout the testing process.

- Robust Clamping Mechanism: Features a strong clamping mechanism for secure fixation of PET bottles during testing, minimizing slippage and ensuring reliable results.

- Corrosion-Resistant Stainless Steel Test Chamber: Constructed from corrosion-resistant stainless steel, ensuring durability and longevity of the test chamber.

- Fully Automatic Testing: Offers fully automatic testing after simple setup, streamlining the testing process and enhancing efficiency.

- Pressure Release and Settings Control: Precisely controls and measures pressure release and settings through a precise detecting system, ensuring consistency and accuracy.

- User-Friendly Sample Placement: Facilitates ease of use with a simple clamping system for convenient sample placement inside the test chamber.

- Pressure vs Time Graph Output: Generates Pressure vs Time graph output, providing visual representation of test results for comprehensive analysis.

- USB Data Storage Option: Includes USB option for storing test data, allowing for easy retrieval and analysis of test results.

- Data Output in Graphical and Record Format: Outputs test data in both graphical and record format, offering flexibility in data analysis and interpretation.

- Auto Pressure Holds Facility: Maintains pressure levels automatically to ensure consistency throughout the testing process.

- Inbuilt Self-Calibration Facility: Offers easy access to inbuilt self-calibration facility for maintaining accuracy and reliability of test measurements.
