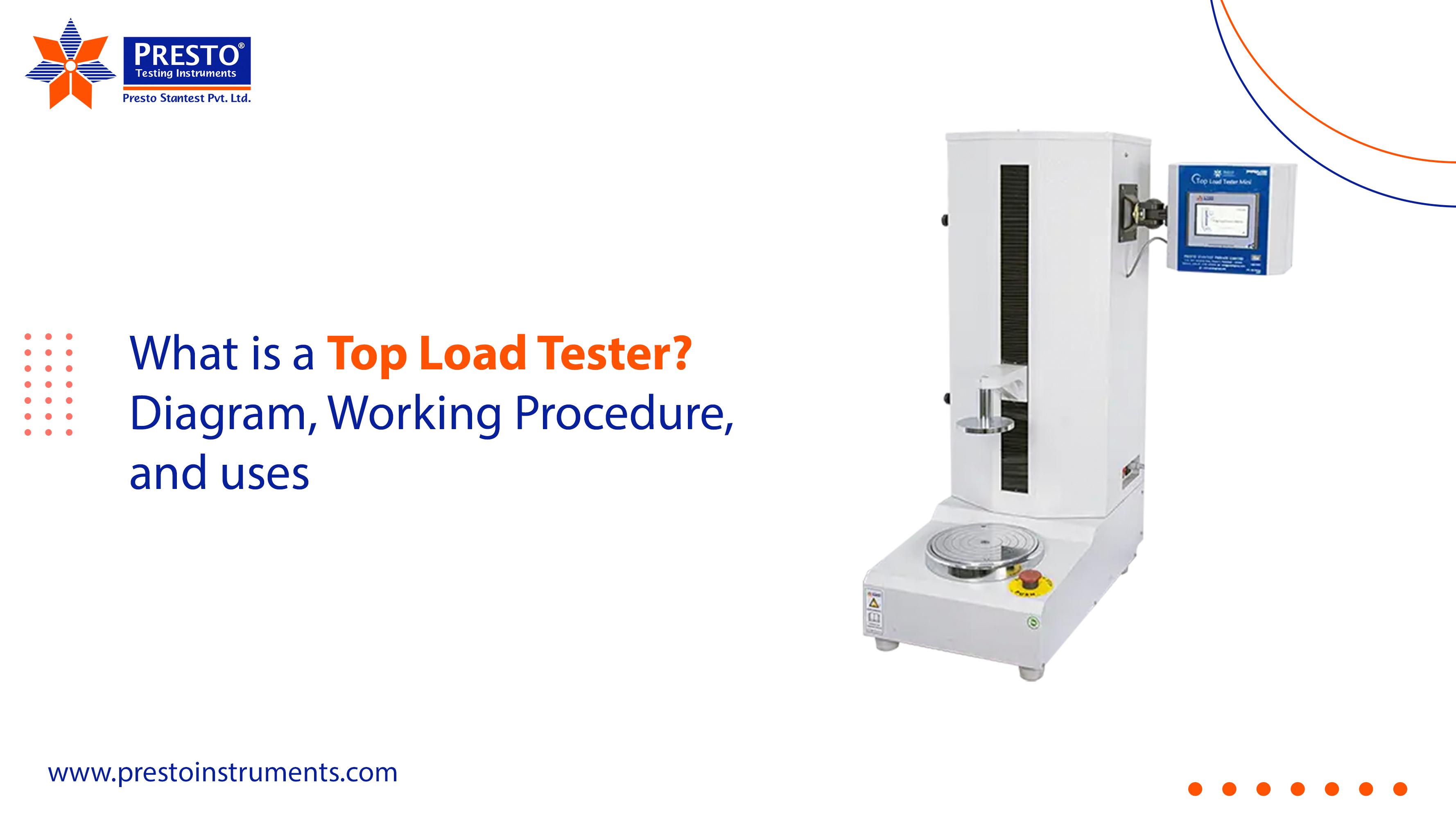

What is a Top Load Tester? Diagram, Procedure, and Uses

What is a Top Load Tester? Diagram, Procedure, and Uses

18-Apr-2025

Presto Instruments

Strength and durability are major issues in construction and structural engineering. Hidden defects can cause structural failures under high loads.

To prevent this issue from occurring, the top load tester - a device that tests the load capacity of a material in bending or breaking - is used.

In this blog, we will look at the top load tester in detail by discussing its working principle, diagram, and uses in product safety and quality assurance practice.

What is a Top Load Tester?

A top load tester is an essential quality control device used to evaluate the vertical compression strength of containers like plastic bottles, jars, and packaging materials. Used for assessing strength, a top load tester applies downward force to measure how much compression a container can handle.

This test is particularly important in sectors like food and beverage, pharmaceuticals, and logistics, where structural integrity is crucial. It assesses the strength, durability, and reliability of packaging to ensure safe stacking, transport, and storage.

Top Load Tester Diagram

The following are the typical components of a top load test diagram, which will allow evaluation of the strength of a container.

  1. Load cell/sensor: A load cell is a sensor that transforms applied mechanical force into an electrical signal, which provides an accurate measurement of load.
  2. Compression Plate: The compression plate is a flat surface that moves down, which will apply vertical pressure to a test sample during load testing.
  3. Control Panel: The control panel is a user interface that provides control for user-defined test parameters, along with the display of real-time load data and results.
  4. The sample holder is a stable form that secures the test sample without tilting or shifting out of alignment during testing.
  5. Frame/Body Structure: The frame or body structure provides a rigid support to maintain stability and accuracy during the load testing process.

How Does a Top-Load Tester Work?

Top load testers measure how well a container withstands vertical pressure without collapsing. Using a flat plate, the tester applies downward pressure, and a load cell tracks the force applied until the container collapses. Here is the detailed explanation of how a top-load tester works:

Preparation of the sample:

  • Select a container such as a bottle, jar, or box to be tested.
  • Ensure it is clean, dry, and free from defects.

Placement on base plate:

Place the sample upright and centered on the base plate or sample holder for proper alignment.

Setting test parameters:

You can use the control panel to input the desired test settings, such as load speed, maximum force, or test duration.

Initiation of Test:

Start the test. The compression plate begins moving downward at the set speed, applying vertical force to the sample.

Force Measurement:

The load cell continuously measures the applied force in real-time as the sample is compressed.

Detection of Deformation or Failure:

The test continues until the sample shows visible deformation, collapse, or reaches the maximum load capacity.

Data Display and Recording

The force data and results are displayed on the screen and may also be stored or printed for recordkeeping.

What is a top-load tester for PET bottles?

A top-load tester for PET bottles is an instrument that measures how much vertical compressive force bottles can withstand. It determines how much force the bottle can carry before it fails. This is essential to know for durability during distribution and handling. Specifically, the importance lies in the product's ability to withstand the rigors of stacking, storage, and handling without failure. Ultimately, it is about keeping the product safe.

Most Important Uses of Top Load Tester

Top-load testers are used to assess packaging strength, prevent collapse, ensure quality, and maintain safety during stacking and transport. Here are some major uses of the Top Load Tester:

Packaging Quality Assurance

Packaging Quality Assurance involves using a Top Load Tester to evaluate the strength and durability of packaging materials. It ensures that containers, such as bottles or boxes, can withstand stacking, shipping, and handling stresses without collapsing or deforming. This process helps prevent damage during storage and transportation, maintaining product integrity.

Product Testing in the Food and Beverage Industry

In the food and beverage industry, a Top Load Tester is used to assess the structural integrity of packaging, such as bottles, cans, and jars. It ensures that these containers can withstand vertical pressure during storage, transportation, and stacking without collapsing or breaking, maintaining product safety and quality.

Pharmaceutical Packaging Validation

In pharmaceutical packaging, a Top-Load Tester validates the integrity and durability of containers like pill bottles, vials, and blister packs. It ensures that these containers can withstand vertical compressive forces during transportation, storage, and stacking without compromising the safety, efficacy, or quality of the products inside.

Logistics and Shipping

Logistics and Shipping, a Top Load Tester verifies that packaging can handle the rigors of stacking, storage, and transportation. The Top Load Tester evaluates the containers, cartons, and boxes ' ability to withstand pressure under vertical force. This testing greatly reduces the risk of damage during transportation while ensuring quality and reducing potential costs.

Research and Development

In Research and Development, a top-load test is conducted to test the strength or endurance of packaging materials or packaging designs. By loading packaging to evaluate how containers withstand compressive force, the means to develop improved packaging applications is considered. This ensures product safety at the lowest material costs, while land & air quality delays or denial, ensure the highest quality regardless of storage or transport.

Conclusion

In summary, a top-load tester is an invaluable tool when it comes to evaluating the strength and durability of packaging, including PET bottles. The compressive force indicates whether the container can withstand the weight and pressure during handling, storage, and transportation. It also helps to keep the product intact and protect the container, protecting both the consumer and the responsible company, a significant consideration for all verticals.
