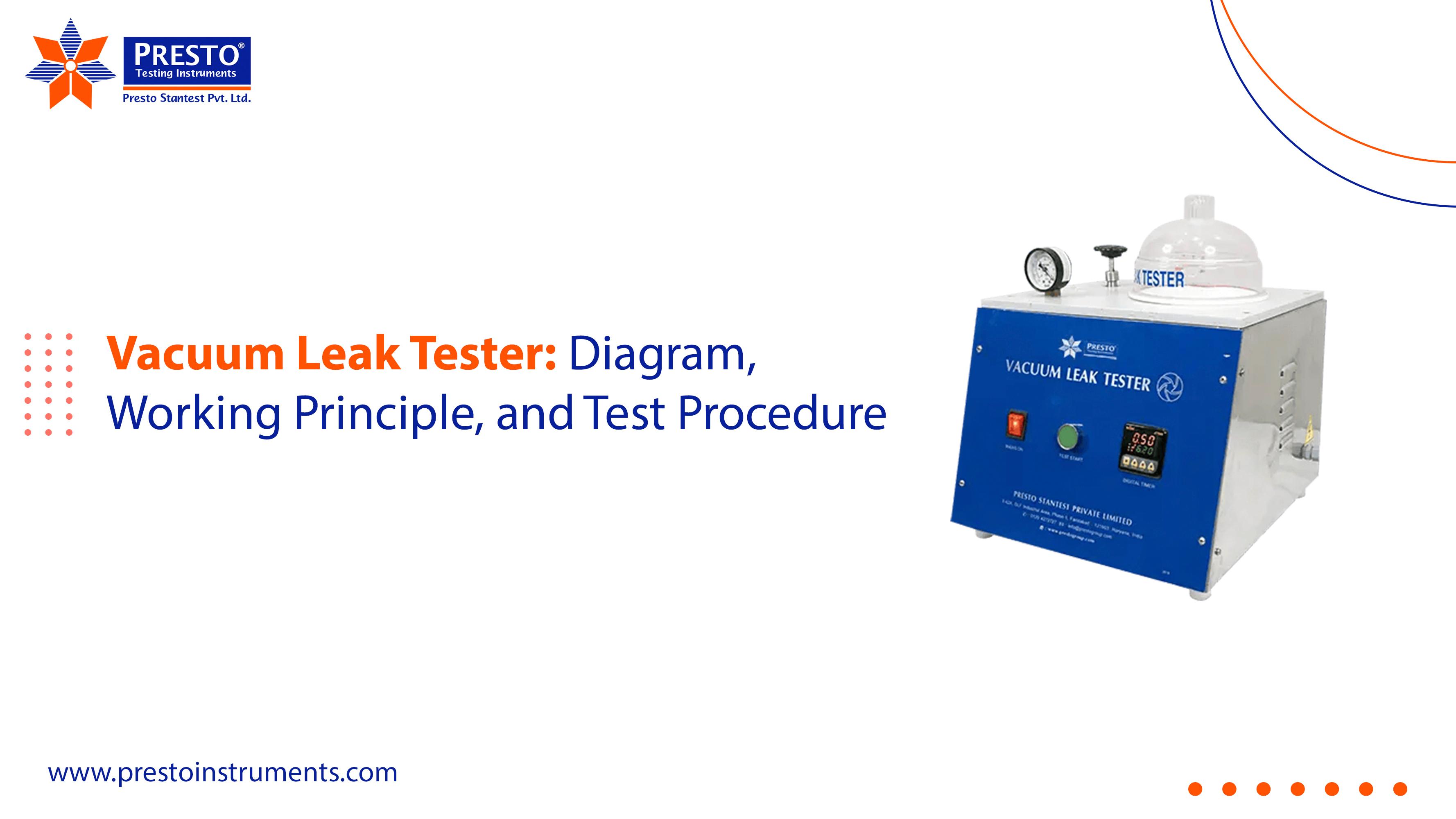

Vacuum Leak Tester: Diagram, Working Principle, and Test Procedure

Vacuum leaks in closed systems can cause serious problems like poor performance, safety hazards, and damage to products. This is especially important in industries like automotive, aerospace, and packaging, where system reliability is critical. A vacuum leak tester is used to detect and measure leaks quickly and accurately, helping ensure the system works properly and meets the required standards.

In this article, we will explain how a vacuum leak tester works, along with a simple diagram, key standards, and the step-by-step testing procedure.

What is a Vacuum Leak Tester?

A vacuum leak tester is a device used to detect leaks in sealed products or systems. It works by creating a vacuum inside the test chamber and monitoring any changes in pressure. In vacuum leak testing, the product or system is placed in a vacuum chamber, and the pressure is monitored over time to detect any leakage.

In this test, if the pressure rises over time, it indicates the presence of a leak. This helps in ensuring the integrity and reliability of the tested products or systems. In simple words, a vacuum leak tester checks if a product is sealed properly by removing air and seeing if any leaks let it back in. It protects the product from getting spoiled or damaged.

Vacuum Leak Tester diagram

A vacuum leak tester diagram consists of a vacuum pump, chamber, pressure gauge, and control panel. They work together to detect leaks by monitoring pressure changes in a closed testing environment. The major components of a vacuum leak tester are explained below:

Vacuum Chamber

This is the airtight container where the product is placed during testing. It is designed to resist negative vacuum conditions. The product is kept inside the chamber to guarantee accurate results.

Vacuum Pump

It is a strong vacuum that ensures that any small leak can be detected due to pressure difference. It helps remove air from the chamber to create a vacuum. In this, the vacuum level created depends on the applications and the product sensitivity.

Pressure Gauge

The pressure gauge measures the pressure inside the vacuum chamber. In the pressure gauge, if pressure increases over time, it suggests that air is entering the chamber through a leak.

Control Panel

The control panel helps operate and monitor the system. It includes buttons to start and stop the test. The Control Panel displays test parameters such as vacuum level, pressure trends, and test duration.

Vacuum Line (Tubing)

The vacuum line connects the vacuum pump, chamber, and sensors. It is made up of airtight, durable materials like silicon or rubber. This line maintains a consistent vacuum pressure by minimizing leaks or pressure drops.

How does the vacuum leak tester work?

A vacuum leak tester is an instrument used to detect leaks or faults in closed packages or containers. It functions on the principle of identifying variations in pressure inside a test sample when it comes in contact with a vacuum environment. Here are the detailed steps involved in how the vacuum leak tester works.

Preparation

The test samples to be tested, like a sealed package or container, are placed inside the test chamber of the Vacuum Leak Tester. It should be sealed and prepared correctly based on the test rules.

Generating a Vacuum

The vacuum leak tester removes air from the test chamber to create a vacuum or low-pressure space. This is usually done using a vacuum pump or similar device. The chamber is sealed tightly so that no outside air can enter during testing.

Stabilization

Once the vacuum is created, the system gives the test item to adjust inside the chamber. This helps the pressure inside the sample to match the low pressure in the chamber.

Pressure Measurement

The vacuum leak tester checks and tracks the pressure inside the test chamber and the item being tested. It uses pressure sensors or special devices that can identify even small changes in pressure very accurately.

Leak Detection

If there is a leak or defect in the test sample, air from outside will enter it, causing the pressure to change. The vacuum leak tester notices this pressure variation and shows it as a sign of a leak.

Test Outcome Screen

The vacuum leak tester shows the test outcome, indicating if the sample has passed or failed the leak test. This can appear on the digital screen, through an audible alarm, or shown on a connected computer.

Vacuum Leak Tester Working Principle

Vacuum Leak Testing is based on the principle of pressure differential inside an enclosed container when exposed to a vacuum. When a sealed object is placed in a vacuum and has a leak, the pressure inside or around it will change measurably. There are several methods implemented for vacuum tests based on the specific applications and techniques used.

Applications of the Vacuum Leak Tester

Vacuum Leak Testers are used to locate leaks in enclosed packages, vessels, and mechanisms. It helps in locating applications in industries such as automotive, medical, packaging, pharmaceutical, and electronics. It maintains the integrity and safety of the product. Here are some of the applications explained in detail:

Automotive Industry

The automotive industry plays an important role in applying vacuum leak testers. It ensures the integrity of components such as fuel systems, air conditioning units, and engine assemblies. By detecting leaks early, manufacturers improve vehicle safety and performance and meet with industry standards.

Medical Industry

The medical industry ensures the sterility and integrity of medical packaging, devices, and containers. These testers detect leaks that could compromise product safety, preventing contamination and ensuring compliance with health regulations. Their use is crucial in quality control and patient safety across healthcare applications.

Packaging Industry

The packaging industry also plays an important role in utilizing vacuum leak testers to ensure product safety and integrity. By detecting leaks in sealed packages, containers, and systems, it helps in maintaining quality standards. It prevents contamination and supports regulatory compliance across food and other sensitive product sectors.

Pharmaceuticals Industry

The pharmaceutical industry uses vacuum leak testers to ensure the integrity of sealed packaging. This testing is essential for maintaining product sterility, preventing contamination, and meeting industry standards. It ensures high-quality drug delivery throughout the supply chain.

Electronics Industry

The electronics industry relies on vacuum leak testers to ensure the airtight sealing of components like sensors, microchips, and battery cells. These testers help detect microscopic leaks, preventing moisture and ensuring long-term reliability.

What is the Vacuum Leak Test Procedure?

A vacuum leak test is a quality assurance technique designed to detect leakage within enclosed packages or vessels. Here is the detailed procedure on how the Vacuum Leak Tester works.

Step 1: Preparing the sample

• Pick the right way to test for leaks using a vacuum, depending upon the product or package being checked.
• While preparing the sample, make sure the sample is contamination-free and properly enclosed.
• Use a clean vacuum chamber for easy visual inspection.

Step 2: Performing the Test

• Gently place the sealed package into the vacuum chamber to prevent air.
• Use a vacuum pump to remove air from the chamber.
• Watch the pressure gauge or use methods like the bubble test to check for leaks or pressure gauge.

Step 3: Evaluation of Results

     Pass: If there is no pressure drop or sign of a leak, the package is considered leak-free.

     Fail: If a pressure drop or leak is found, the package is considered defective and needs further inspection or action.

Step 4: Post-Test

Record the results, noting the test method, sample type, and any observations.

Standards of Vacuum Leak Testing

Key standards for Vacuum Leak Testing Include ASTM D3078 (bubble test), ASTM F2338-09 (vacuum decay), and ISO 27895:2009 (vacuum valves).

1. ASTM D3078: This method submerges packages in water, applies a vacuum, and checks for bubbles that indicate leaks.
2. ASTM F233-09: This method detects leaks by measuring how quickly vacuum pressure drops inside a sealed package.
3. ISO 27895:2009: This standard outlines leak testing methods for vacuum valves that control gas flow or vacuum pressure.
4. ISO 14457: This standard covers the leak testing of packaging using the vacuum decay technique.
5. ASTM D4991: This method immerses empty rigid containers in liquid and applies a vacuum to check for leaks.

FAQs

How do you test for a vacuum leak?

To identify a vacuum leak, use methods like spraying soapy water or brake cleaner on suspected areas and listening for engine idle changes. Use tools like helium leak detectors and smoke machines to locate leaks more accurately.

What tool is used to check for vacuum leaks?

A Vacuum leak tester is used to check the vacuum leaks in any container, box, pipe, and other components by creating a pressure difference. A vacuum pump and pressure gauge are deployed to work this vacuum detection tool.

What is vacuum pressure for leak test?

In vacuum leak testing, generally, the pressure below the atmospheric pressure (Patm) is used for accurate results. For high-vacuum systems, the pressure may be extremely low, often in the range of 10^-6 mbar or lower.

What is the standard for vacuum leak test?

A vacuum leak tester works on the ASTM and International Standards (ISO). Some of the important standards are – ASTM D3078 (bubble test), ASTM F2338-09 (vacuum decay), and ISO 27895:2009 (vacuum valves)
