Benchtop Spectrophotometer

Benchtop Spectrophotometer color Solution

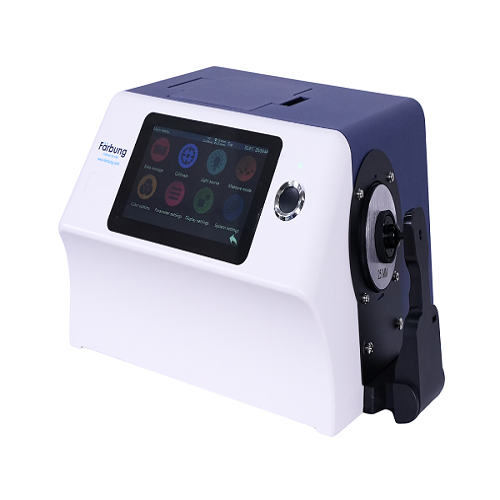

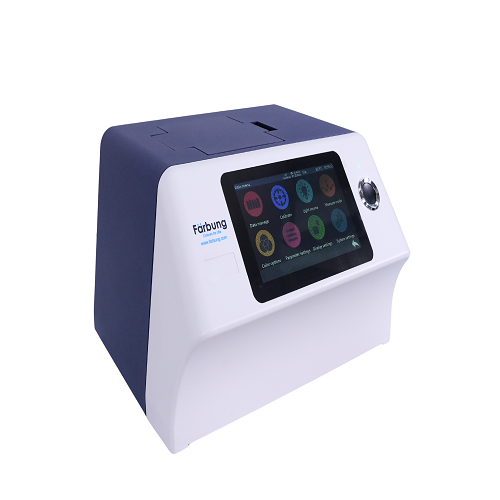

Model : FS890

The Benchtop Spectrophotometer is a high-precision optical measurement instrument designed to deliver accurate, consistent, and reliable color and spectral data for professional laboratory and industrial use. Built with an advanced optical system and a stable measurement platform, this device provides exceptional repeatability and resolution, making it the preferred choice for quality control, research, and product development environments.

What is a Benchtop Spectrophotometer?

A benchtop spectrophotometer is a high-precision laboratory instrument designed to measure the intensity of light absorbed, reflected, or transmitted by a sample. Unlike portable color meters, a benchtop spectrophotometer provides superior accuracy, repeatability, and spectral resolution. It is widely used for color matching, quality control, material analysis, and scientific research where exact color and optical data are essential. With its stable platform and advanced optical system, it delivers reliable measurements across a broad wavelength range, making it an indispensable tool in both industrial and laboratory environments.

How Does a Benchtop Spectrophotometer Work?

A benchtop spectrophotometer operates by directing a controlled beam of light onto a sample and analyzing how that light interacts with the material. Here’s how it works:

Light Source Activation – The device uses a stable light source, such as LED, tungsten, or xenon lamps, to ensure consistent illumination.
Sample Interaction – Light passes through or reflects off the sample depending on the test method.
Optical Separation – A monochromator or diffraction grating separates the light into specific wavelengths.
Detection – Sensors measure the intensity of each wavelength after interaction with the sample.
Data Processing – The system converts these signals into measurable values—such as absorbance, transmittance, color values (L*a*b*), or spectral curves.

What Are the Benefits of a Benchtop Spectrophotometer?

Using a benchtop spectrophotometer offers numerous advantages, including:

High Precision & Repeatability – Provides stable, lab-grade measurements ideal for quality assurance.
Wide Spectral Range – Captures detailed data across UV, visible, or near-infrared wavelengths.
Consistent Color Control – Ensures reliable color matching for manufacturing, printing, plastics, textiles, and coatings.
Advanced Data Analysis – Delivers comprehensive spectral graphs, color difference values, and customizable reports.
Improved Quality Standards – Enables compliance with international color and measurement standards (ASTM, ISO, CIE).
Versatile Measurement Modes – Supports reflectance, transmittance, opaque/transparent materials, gloss options, and more.

Applications of Benchtop Spectrophotometers

Benchtop spectrophotometers are used across a wide range of fields, including:

Paints & Coatings – Color formulation, batch consistency, gloss measurements.
Plastics & Polymers – Quality control for pigments, resins, and molded parts.
Textiles & Fabrics – Dye accuracy, shade matching, and color stability testing.
Printing & Packaging – Ink density, color matching, and substrate evaluation.
Food & Beverages – Color grading, ingredient quality, and product consistency.
Pharmaceuticals – Purity testing, compound analysis, and research applications.
Cosmetics – Shade matching for makeup, skincare, and personal care products.
Academic Research – Material characterization, chemical analysis, and optical studies.

Presto Instruments is a leading manufacturer and supplier of Benchtop Spectrophotometer. For the best price, contact us for a quote or call now!

Features & Highlights

Specification

Illuminant: 360nm–780nm Combined LED Lamp with 400nm cut-off
Sensor: 256 Image Element Double Array CMOS Image Sensor
Wavelength Pitch: 10 nm
Semiband Width: 10 nm
Reflectance Range: 0–200%
Measuring Aperture:
- Reflective: fi sign 30mm/fi sign 25.4mm, fi sign 18mm/fi sign15mm, fi sign10mm/fi sign 8mm, fi sign 6mm/fi sign 4mm
- Transmissive: fi sign 30mm, fi sign 25.4mm
Integrating Sphere Size: Φ154 mm
Optical Geometry:
- Reflectance: d/8 (SCI & SCE; Include UV / Exclude UV)
- Transmittance: d/0 (SCI & SCE; Include UV / Exclude UV)
Conformance: CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7
Color Space: CIE LAB, XYZ, Yxy, LCh, CIE LUV, Musell, s-RGB, HunterLab, βxy, DIN Lab99
Color Difference Formula: Traingle E ab, TraingleE uv, TraingleE 94, TraingleE cmc(2:1), TraingleE cmc(1:1), TraingleE00, DINTraingleE99, TraingleE(Hunter)
Observer: 2° / 10°
Illuminants: D65, A, C, D50, D55, D75, F1–F12
Measurement Time: About 3 s (SCI & SCE: about 6 s)
Repeatability:
- Spectral Reflectance: fi sign25.4mm/SCI, SD within 0.05% (400–700 nm: within 0.04%)
- Chromaticity Value: fi sign25.4mm/SCI, SD TraingleE*ab within 0.02
- Spectral Transmittance: fi sign 25.4mm/SCI, SD within 0.05% (400–700 nm: within 0.04%)
- Chromaticity Value (Transmittance): fi 25.4mm/SCI, SD Traingle E*ab within 0.03
Inter-Instrument Error: 25.4mm/SCI, Within TraingleE*ab 0.15 (Average for 12 BCRA Series II color tiles)
Working Environment: Temperature 0–40°C; Humidity 0–85% (No Condensation)
Storage Environment: Temperature -20–50°C; Humidity 0–85% (No Condensation)
Data Storage Capacity: 5000 Standard Data; 40000 Sample Data (SCI & SCE)
Light Source Life: 5 years or over 3 million measurements
Screen: 7" TFT Capacitive Touch Display
Data Port: USB & Bluetooth Connectivity
Standard Accessories:
Power adaptor, user manual, calibration plate, checking green board, sample holder (4mm, 8mm, 15mm, 25.4mm), USB cable, PC software, transmissive test fixture assembly
Size: 370 × 300 × 200 mm
Weight: 9.6 kg
Power Supply: DC 24V, 3A Power Adapter

Optional Accessories:

Micro-printer
Transmissive test clamp component

Features of FS890 Benchtop Spectrophotometer

Measures color, reflectance, and transmittance with precision.
Wide range of color spaces including CIE Lab, XYZ, HunterLab, RGB, and more.
Supports multiple color difference formulas (ΔEab, ΔE94, ΔEcmc, ΔE00, etc.).
Optical geometry: d/8 (SCI & SCE) for reflectance and d/0 for transmittance.
Equipped with 7-inch TFT capacitive touchscreen for smooth operation.
High data storage capacity – up to 40,000 samples.
Fast measurement time – results in ~3 seconds.
Durable LED lamp with over 3 million measurement lifespan.
Compact benchtop design with robust build for lab and industrial use.

Technical Specification

urner Diameter: 9 mm
Burner Angle: 0°, 45°, and 60° from horizontal
Maximum Wire Length Tested: 600 mm
Digital Timer Range: 0–999.9 seconds
Timer Accuracy: ±1 second at full range
Least Count: 0.1 second
Display: Digital 7-segment display
Power Supply: 220V, Single Phase, 50 Hz
Inner Chamber Size (L × D × H): 300 × 600 × 1175 mm
Distance from Nozzle to Specimen: Adjustable (100 mm and 50 mm)
Flame Height Gauge: Included
Gas Flow Control Valve: Yes, for precise flame adjustment
Specimen Holding Fixture: Designed for multiple wire diameters
Material: Stainless steel construction with powder-coated finish
Observation Window: Heat-resistant front glass for safety and visibility
Compliance Standards: IS/ISO 6722 and ISO 19642
