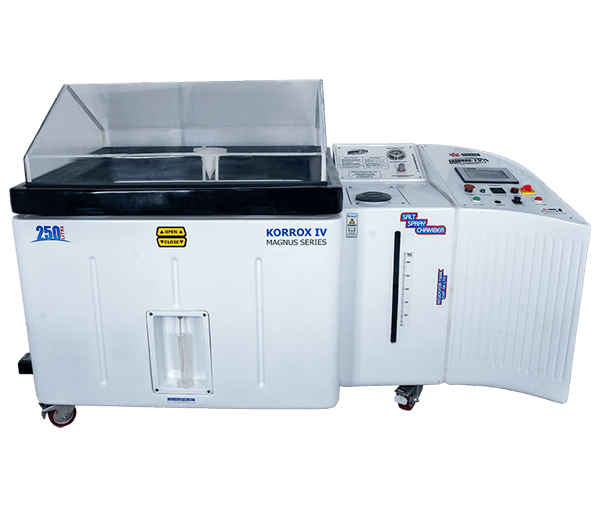

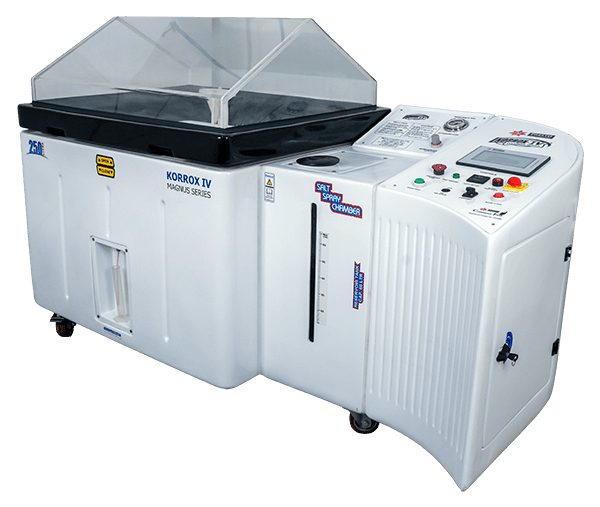

Salt Spray Chamber - Korrox IV Magnus Series Computerized (1000 Litres)

The Salt Spray Chamber - Korrox IV Magnus Series Computerized (1000 Ltr) is a powerful and advanced testing machine designed to check the corrosion resistance of materials and surface coatings. Whether you are testing metals, paints, coatings, or auto parts, this chamber gives you reliable and accurate results every time.

Key Features

  • Large Capacity (1000 Litres): Perfect for bulk testing or larger components.
  • Fully Computerized Control System: Easy-to-use interface with touch screen display. You can set time, temperature, and spray cycles digitally for complete control.
  • Uniform Salt Fog Distribution: A specially designed atomizer ensures even salt spray throughout the chamber.
  • Sturdy and Durable Build: Made with strong, corrosion-resistant materials to last longer even in harsh testing environments.
  • Temperature and Humidity Control: Ensures precise test conditions for accurate and repeatable results.
  • Auto Water Refilling System: Keeps testing smooth with automatic replenishment of water and solution when needed.
  • User-Friendly Software: The chamber comes with smart software for data logging, real-time monitoring, and report generation.

Applications:

  • Automobile industry
  • Metal finishing & surface coating companies
  • Paint & powder coating plants
  • Research labs
  • Quality control departments
  • Aerospace and marine sectors

Why Choose the Korrox IV Magnus Series?

Because it combines cutting-edge technology, ease of use, and high reliability all in one powerful machine. Whether you are a small lab or a big manufacturing unit, this chamber will help you improve product quality by detecting corrosion issues before your products reach the market.



Features & Highlights

  • Display: HMI Based touchscreen 7" TFT LCD Color screen
  • Chamber Temp Range: Ambient to 40ºC
  • Test Chamber Temp. working Range: 35ºC ± 2ºC
  • Chamber Temperature Least Count: 0.1ºC
  • Chamber Temperature Repeatability: ± 2ºC
  • Air Saturator Temperature Range: 40ºC- 49ºC
  • Air Saturator Temperature Least Count: 0.1ºC
  • Air Saturator Temperature Repeatability: ± 2ºC
  • Power: 220V, Single phase, 50 Hz, 15A
  • pH value of Salt Solution: 6.5 to 7.2 pH
  • Temperature Control: Inbuilt PID Temperature Controller
  • Timer(Hour meter): 6 digits
  • Test Air Pressure: 0.7Kg/cm² - 1.2Kg/cm²
  • Air Regulator: 0 to 30 psi
  • Compressed Air requirement: Approx. 7 cfm (Air Compressor not part of supply) Main airline pressure regulator with filter in customer scope.
  • HMI-based Touchscreen Model - Intuitive touchscreen interface for easy operation and navigation.
  • Inbuilt Temperature Settings - Allows for precise temperature control during testing.
  • Salt Spray Test Mode - Enables customization of parameters according to the test sample requirements.
  • Corrosion Resistant PT-100 Sensor - Ensures accurate temperature measurement in corrosive environments.
  • Solid State Digital Programmable Temperature Controller - Provides reliable temperature control and stability throughout the test.
  • Program Profile Selection - Allows users to select predefined test parameters for efficient testing.
  • Easy Data Management - Enables creation and management of PID settings, air saturator settings, test temperature, test duration, and air purge time.
  • Current Test Status Display - Provides real-time status updates on the ongoing test for monitoring and tracking purposes.
book-demobook-demo

For more details & information
