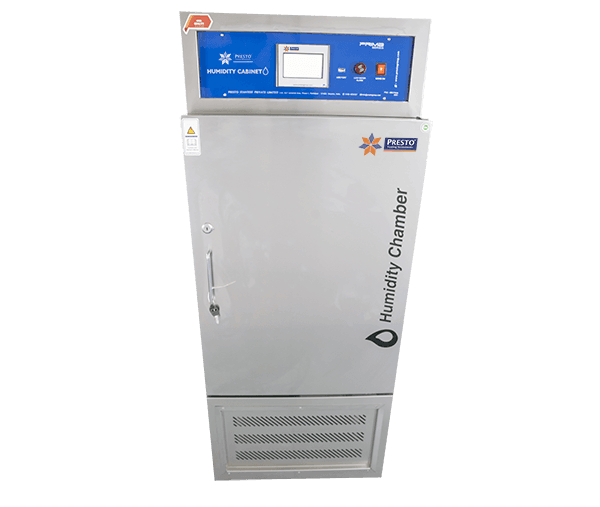

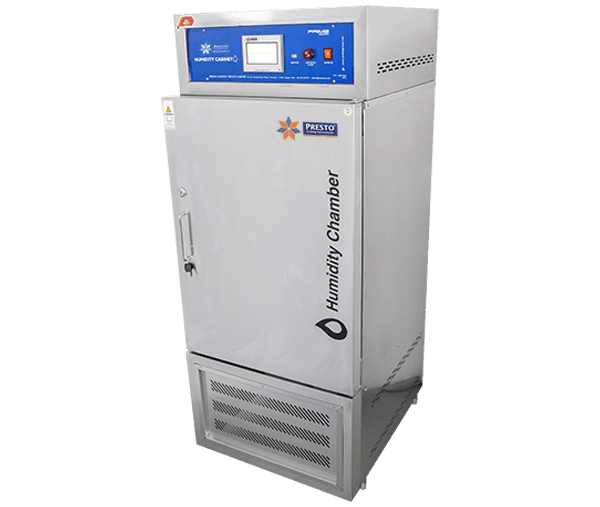

The Humidity Chamber - Touch Screen with Data Logger is designed to assess changes in the physical properties of materials under severe environmental conditions, such as varying humidity levels. Equipped with an advanced touch screen panel and upgraded features, this machine offers precise and easy test observations. It includes a three-colored tower-style alarm to alert the operator effectively. This chamber is ideal for simulating high humidity environments within a confined cabinet.

Its primary purpose is to detect alterations in the physical characteristics of materials, helping to determine the actual operational lifespan of testing devices. The chamber adheres to industry standards such as ASTM D1776 and ASTM D1776M-15.

Features & Highlights

    • Inside Dimension : 455 x 455 x 710 mm
    • Display : HMI Based Touch Screen
    • Accuracy Temperature : ± 2ºC / Humidity ± 5%
    • Least Count/Resolution Temp / Humidity : 0.1ºC / 1 %
    • Power : 15A, 220V , Single phase, 50 Hz
    • Temperature Range : 15ºC to 60ºC
    • Humidity Range : up to 95%RH
    • Timer : 9999 Hr
    • No. of Sample racks : 2
    • Wet Heater : 1 kW, 1 no.
    • Dry Heater : 500 Watt, 1 no.
    • Temperature Sensor : 1 (PT-100)
    • Humidity Sensor : 1 (RH)
    • Movement : Castor Wheels
    • Material : Exterior and Interior Stainless Steel Finish Stain Steel matt finish for corrosion resistance
    • Water Level Low : Alarm output

1. Auto Tuning Function: Features an inbuilt auto-tuning function for optimal performance and precise control.

2. Water Level Indicator: Includes a water level indicator to ensure appropriate water levels for consistent humidification.

3. Rapid Air Circulation: Equipped with a rapid air circulation system to maintain uniform environmental conditions.

4. German Imported Fan: Utilizes a high-quality German imported fan to ensure uniform and homogeneous heating, cooling, humidity, and dehumidification within the chamber.

5. Inbuilt Calibration Feature: Comes with an inbuilt calibration feature for maintaining accuracy and reliability in test results.

6. Auto Stop Feature: Includes an auto stop feature to automatically stop the machine at the set time, ensuring safety and efficiency.
