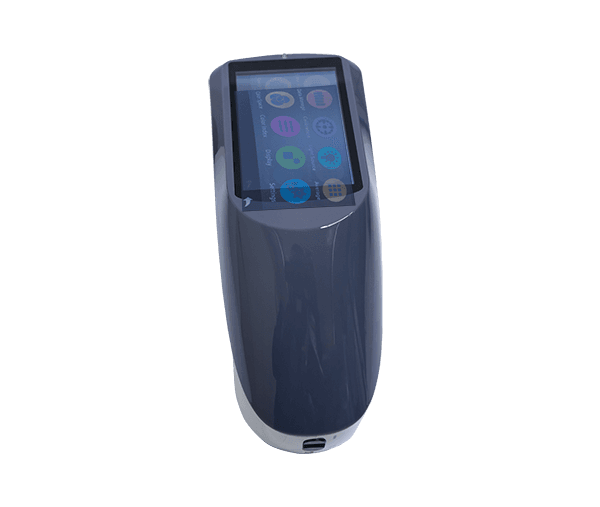

A color spectrophotometer is a specialized instrument crafted for precise analysis of physical samples through comprehensive spectrum color measurement. Distinguished by their ability to offer multiple illuminant/observer combinations and operate in various geometric arrangements, color spectrophotometers offer unparalleled flexibility and versatility compared to colorimeters.

Adhering to the recommended D/8 geometric optical illumination by CIE, these instruments are adept at measuring SCI/SCE reflectance data of samples. They accurately gauge and indicate all color difference formulas and color indexes across a range of color spaces. Moreover, they conform meticulously to international standards including CIE No.15, GB/T 3978, GB2893, GB/T 18833, ISO7724/1, ASTM E1164, and DIN5033 Teil.

Features & Highlights

    Optical GeometryReflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle)
    Integrating Sphere Size48mm
    Light SourceCombined LED Light, UV Light
    Spectrophotometric ModeSpectrophotometric Mode
    Sensor256 Image Element Double Array CMOS Image Sensor
    Wavelength Range400-700nm
    Wavelength Interval10nm
    Measuring ApertureDual Aperture: 10mm/8mm & 5mm/4mm
    Specular ComponentSCI&SCE
    Color SpaceCIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB, RGB
    Color Difference FormulaΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter)WI (ASTM E313, CIE/ISO, AATCC, Hunter)
    Other Colorimetric IndexYI(ASTM D1925, ASTM 313), Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity, 8° Glossiness
    Observer Angle2°/10°
    IlluminantD65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12
    Displayed DataSpectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offse
    Measuring Time2.6s
    RepeatabilityMAV/SCI: ΔE*≤0.03
    Measurement ModeSingle Measurement, Average Measurement
    BatteryLi-ion battery. 5000 measurements within 8 hours
    DimensionL*W*H=184*77*105mm
    Weight600g
    Illuminant Life Span5 years, more than 3 million times measurements
    Display3.5-inch TFT color LCD, Capacitive Touch Screen
    Data PortUSB, Bluetooth 4.0
    Data StorageStandard 2000 Pcs, Sample 20000 Pcs
    LanguageEnglish, Chinese
    Operating Environment0~40°C, 0~85%RH (no condensing), Altitude < 2000m
    Storage Environment-20~50°C, 0~85%RH (no condensing)
    Standard AccessoryPower Adapter, Built-In Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust Cover
  • Long Life, Low Power LED Light Source: Equipped with a durable LED light source that offers extended lifespan and minimal power consumption.
  • Concave Grating, CMOS Image Sensor: Features a concave grating and a 256-image element double arrays CMOS image sensor for precise and accurate color measurement.
  • Switchable Aperture: Offers a switchable 8/4mm aperture, providing flexibility for different measurement needs.
  • SCI/SCE Support: Capable of simultaneously supporting both SCI and SCE modes, ensuring comprehensive color measurement capabilities.
  • Sample Spectra Measurement: Able to measure sample spectra and provide accurate Lab data, ideal for color matching and precise color transmission.
  • Stain-Resistant White Calibration Plate: Includes a super stain-resistant and stable standard white calibration plate for accurate calibration.
  • Large Storage Capacity: Capable of storing up to 2000 standard readings and 20000 sample readings, allowing for extensive data storage and analysis.
