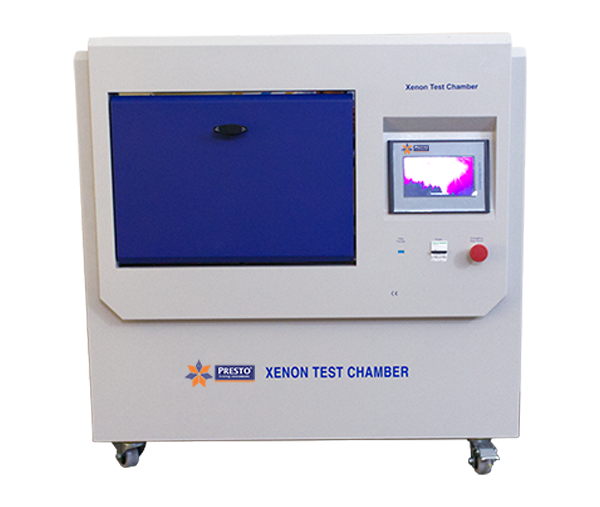

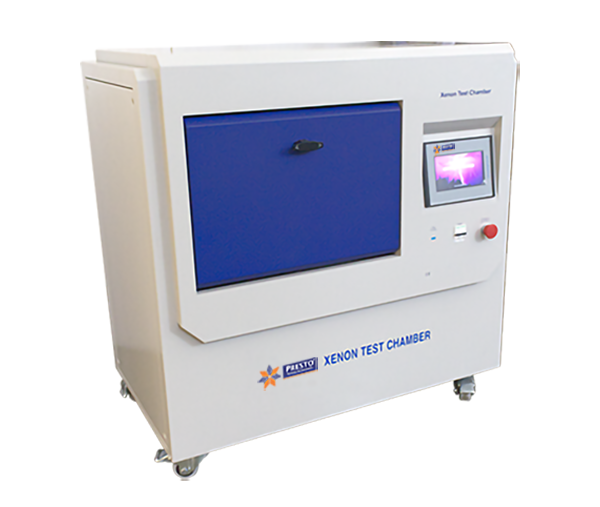

Xenon Test Chambers - PSPL-866

Model : PSPL - 866

Presto provides a range of environmental testing instruments that can recreate real-life weather conditions. One of the best tools offered by Presto is the Xenon 866, which is designed to test how well materials can resist different weather conditions. This equipment is especially helpful for checking the durability of polymers under varying climates created in the lab. It is also a cost-effective way to measure the quality and performance of polymers.

These accelerated weathering testers usually come with two types of lamps: fluorescent lamps and xenon lamps. Among them, xenon lamps are the most commonly used because they are highly practical. Xenon lamps help determine the actual lifespan of polymers. They are filled with xenon gas and produce a large amount of light that closely resembles sunlight. This allows the testers to measure how heat and light affect the materials. Xenon lamps provide a stable light spectrum and consistent energy, which makes the results more reliable.

Presto Xenon Test Chamber – PSPL 866 Model is a top-quality testing machine that offers a reliable source of light and allows adjustment of sunlight spectrum. It comes with a control panel to manage humidity and temperature inside the chamber. This machine can recreate different weather conditions such as sunlight, moisture, and heat. By simulating these conditions, it can show how polymers react to them, including effects like fading, flaking, chalking, oxidation, and other changes in quality.

Presto Instruments is a leading manufacturer and supplier of Xenon Test Chambers - PSPL-866. For the best price, contact us for a quote or call now!

Features & Highlights

Specification

Xenon Lamp: 1.8 kW
Filter Options: Daylight filter or Window Glass filter
Lamp Life: 1,500 to 2,000 hours
Exposure Area: 1,000 cm²
Specimen Capacity (Standard 150 × 70 cm): 9 pieces
Adjustable Irradiance Range:
- 0.5 – 2.0 W/m² (Single point control: 340 nm)
- 0.35 – 1.0 W/m² (Single point control: 420 nm)
- 50 – 120 W/m² (Full spectrum: 300 – 400 nm)
Adjustable Testing Temperature: Room Temperature +30°C to 80°C
Power Supply: 220 V, 50/60 Hz, 12 A

Review & Rating

FAQs

What is the PSPL-866 Xenon Test Chamber used for?

The PSPL-866 is used to simulate real-life weather conditions in a laboratory. It helps test the durability and performance of polymers and other materials under sunlight, heat, and moisture.

What is the lamp life of the xenon lamp?

The xenon lamp has a lifespan of approximately 1,500 to 2,000 hours.

What is the adjustable irradiance range?

0.5 – 2.0 W/m² (Single point control: 340 nm)
0.35 – 1.0 W/m² (Single point control: 420 nm)
50 – 120 W/m² (Full spectrum: 300 – 400 nm)

What is the temperature range for testing?

The chamber allows adjustable temperatures from Room Temperature +30°C to 80°C.

What is the power requirement?

The PSPL-866 operates on 220 V, 50/60 Hz, 12 A power supply.

Why choose the PSPL-866 Xenon Test Chamber?

It provides a reliable, cost-effective, and controlled environment to measure the durability of materials under realistic sunlight and weather conditions, ensuring accurate and consistent results.
