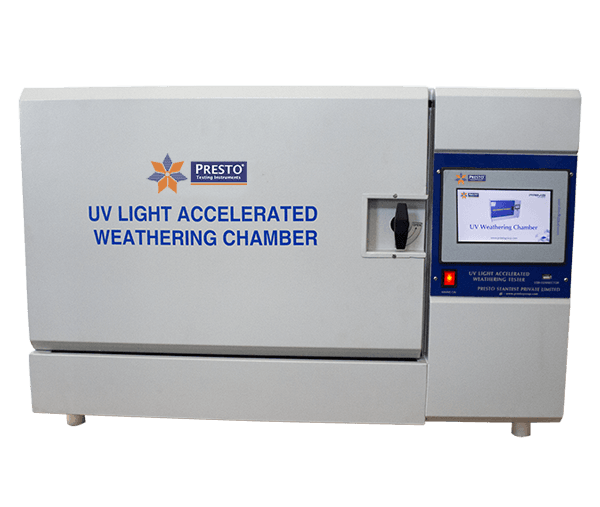

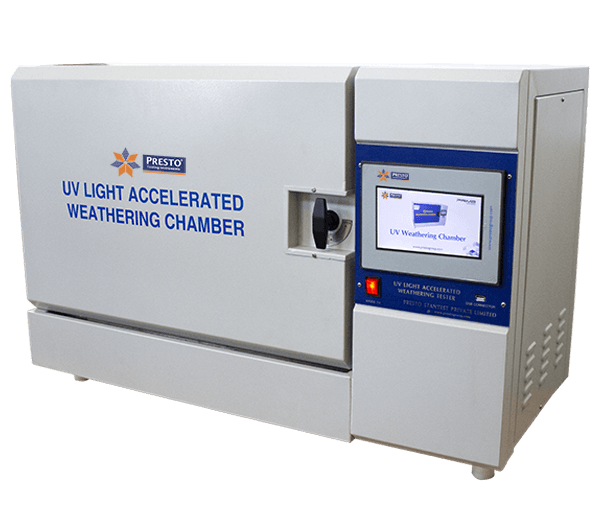

PRESTO Bench UV Light Accelerated Weathering Tester (Touch Screen)

Model : PBUAW-852

The Bench Ultraviolet Light Accelerated Weathering Tester is an affordable and user-friendly machine designed to meet all weathering testing requirements. This highly effective instrument simulates natural weathering conditions in a laboratory setting, catering to the diverse needs of various customers. Equipped with three 20W lamp lights as light sources, it allows users to set parameters such as temperature, illumination time, and spray time to replicate natural environmental factors that cause material degradation. The instrument delivers highly accurate and reliable test results.

This testing equipment includes 18 standard panels, each measuring 150 x 70mm. Samples are placed in the chamber on a rotating specimen rack, ensuring consistent exposure to irradiance energy across all specimens. This uniform exposure enhances the repeatability and comparability of test outcomes. The latest touch screen feature provides the operator with an intuitive interface to control the machine, allowing for easy monitoring and measurement of parameters during the test procedures. The instrument's user-friendly design ensures a convenient and efficient testing process.

Features & Highlights

    • Power Supply: 220±22V/50±0.5Hz
    • Temperature Range: From RT+5 C to 80 ºC
    • Test Time Limit: 1h to 99999h
    • Spray TimeLimit: 1min – 99999min
    • Life of Lamps: 1600h
    • Maximum Irradiance of the new lamp: UVA Lamps can reach 0.7 W/m, UVB Lamps can arrive 0.4W/m
    • Distance of Specimen from the lamp: 50mm
    • Speed of Rotating Frame: 3.7 rotations per minute
    • Flow Rate of water pump: ≤ 7L/min
    • The order can be placed on the basis of lamps:

      • UVB lamps (20W/313nm)
      • UVA lamps (20W/340nm)

1. Advanced Touch Screen Interface: The machine features the latest touch screen technology, providing an intuitive and easy-to-use interface for effortless operation and control.

2. Uniform Irradiance Exposure: The instrument ensures that every specimen receives the same amount of irradiance energy, improving the repeatability and comparability of test outcomes.

3. Comparative Analysis: The tester facilitates easy comparison between the actual specimen and the tested product, helping users to identify damage quickly and effectively.

4. Accelerated Damage Assessment: The machine simulates natural weathering conditions, enabling users to observe and measure damage on specimens in a significantly short span of time.

5. Convenient Viewing Windows: The instrument provides highly convenient and user-friendly windows to view and measure test parameters and results in real time.

6. High Reliability and Accuracy: The instrument delivers highly reliable and accurate test results, ensuring confidence in the data collected.

7. Fluorescent UV Lamps: Equipped with fluorescent UV lamps, the tester offers a consistent and effective light source for weathering tests.

8. Automatic Irradiance Control: The irradiance is controlled automatically within a closed-loop system, ensuring precise and stable light exposure throughout the testing process.

9. Safety and Protection Features: The instrument includes alarms and protection features for creep-age, water breaking, overloading, and over-temperature, ensuring safe and reliable operation.
