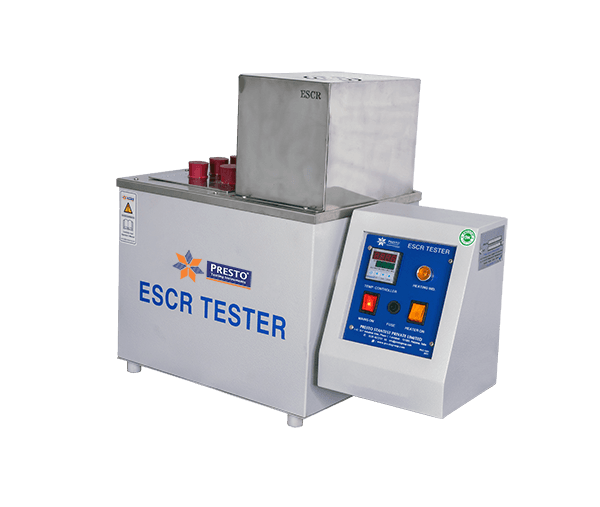

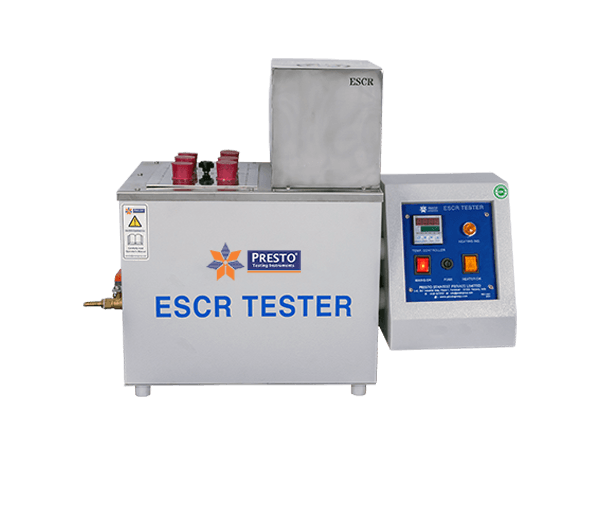

Environmental Stress Cracking Resistance - E.S.C.R.

Model : PEC - 1001

The Environmental Stress Cracking Resistance Tester is a specialized test cabinet designed to evaluate changes in the physical characteristics of plastic materials and determine their actual working life under environmental stress.

Presto's Environmental Stress Cracking Resistance Tester comes with standard accessories, including a cutting die, glass tubes, a digital temperature controller, and foils. Its aesthetic appeal is enhanced by an autumn grey and blue finish, complemented by bright chrome/zinc plating for corrosion resistance.

This tester is specifically designed to assess the impact of environmental factors on blow-molded polyethylene containers. Plastic containers may experience mechanical failure and cracking in the presence of certain substances like soaps, oils, detergents, or wetting agents. These failures occur at significantly lower stress levels when exposed to such environments. Presto's tester ensures accurate evaluation of these effects, providing essential insights into the durability and performance of plastic materials under environmental stress.

Features & Highlights

Specification

Power : 220 V, 50 Hz, single

Temperature Range(For Silicone Oil) :From ambient to 250° C.

Temperature Range(For Water): Ambient to 90ºC

Least Count/Resolution: 0.1ºC

Accuracy: ± 2ºC

Display: LED(Digital)

Motor: 1/70 HP, 1350 RPM

No of stations: Six.

Material of Construction: Inner bath: Stainless Steel

Outer body: Mild Steel duly powder coated

Accessories: Cutting die, Nicking jig, Bending cum transfer tool and Aluminium foil – 1 no. Specimen holder, Test tube, and Rubber cork – 6 nos. each.

Paint: Powder coated.

Features & Highlights

Temperature Controlled through PID Controller - Ensures precise and stable temperature regulation within the chamber, enhancing test accuracy.
Highly Accurate Test Results - Provides reliable and consistent results under uniform temperature conditions.
Advanced Digital Microprocessor-Based PID Temperature Controller - Features a sophisticated PID controller for precise temperature management.
Set Value (SV) and Process Value (PV) Display - Offers clear visibility of the set temperature and actual process temperature on the display.
Inbuilt Auto-Tuning Function - Automatically fine-tunes the temperature control system for optimal performance.
Bright LED Display - Enhances readability and user convenience with a clear and bright LED screen.
Rapid Heaters - Equipped with fast-acting heaters to ensure uniform and homogeneous heating throughout the chamber.
Integral Water Drain System - Facilitates easy and efficient drainage of water from the chamber.
Inbuilt Calibration Features - Allows for precise calibration with reference to a master PID controller, ensuring ongoing accuracy.
Stirrer Motor for Precise Stirring - Ensures uniform temperature distribution by precisely stirring the sample inside the tank.
Set of Test Tubes with Fixture - Includes a complete set of test tubes and a fixture for securely holding samples within the tank.
