Products made with metals & related materials are extremely prone to rusting & corrosion which makes it necessary for manufacturers to utilise these materials in the production processes to check their durability & longevity.

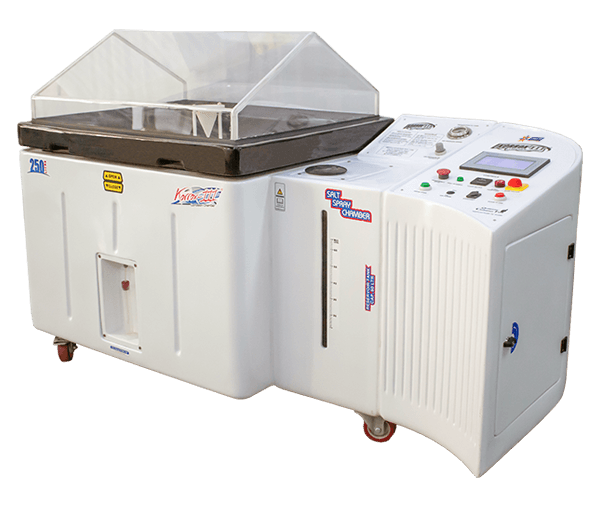

The Cass cum salt spray chamber is a revolutionary lab testing instrument designed exactly for the evaluation of these materials under controlled climatic conditions. The instrument is highly advanced when it comes to testing procedures. The segregation of the instrument into 4 main divisions enhances the accuracy and expedites the testing with absolute ease.

The 450l inner chamber of the instrument allows the testing of mid-sized samples into three different specimen holders as per the shape & size of the specimen for higher levels of uniformity & evenness.



Features & Highlights

  • Display: HMI Based Touchscreen 7" TFT LCD Color Screen
  • Chamber Temp. Range: Ambient to 60°C
  • Test Chamber Temperature Range: 49°C ± 2°C
  • Chamber Temperature Least Count: 0.1°C
  • Chamber Temperature Repeatability: ± 1°C
  • Air Saturator Temperature Range: Ambient to 65°C
  • Air Saturator Temperature Least Count: 0.1°C
  • Air Saturator Temperature Repeatability: ± 2°C
  • Power: 220V, Single phase, 50 Hz, 15 A
  • Temperature Control: Inbuilt PID temperature Controller
  • Timer (Hour meter): 6 digits
  • Test Air Pressure: 0.7Kg/cm² - 1.7Kg/cm²
  • Air Regulator: 0 to 30 psi
  • HMI-Based Touchscreen Display: Ensures ease of operation with an intuitive user interface.
  • Inbuilt PID Temperature Control: Provides precise temperature settings for accurate testing.
  • Corrosion-Resistant PT-100 Sensor: Durable and reliable sensor for long-term use.
  • Programmable Test Parameters: Users can select and set test parameters including PID settings, air saturator settings, test temperature, and test/air purge time.
  • Live Test Status Display: Real-time monitoring of test progress.
  • Robust Triple-Walled Construction: Fiber-reinforced body for enhanced durability.
  • Pneumatically Operated Canopy: Available on the 250 Ltr. model for easy operation.
  • Air Purge Post-Test: Ensures fog settlement after testing.
  • Reservoir Tank with Sponge Filter: Equipped for effective filtration.
  • USB Data Saving: Allows data to be saved directly to a USB device (pen drive not included).
  • Dual Display of Set and Present Values: Simultaneous display of set values (SV) and present values (PV) for easy reference.
  • Canopy Design: Angled to prevent droplets from directly hitting the test sample, ensuring more accurate results.
